Zeiss ScanPort: Optical 3D metrology with Inspect

"ScanPort" from Zeiss Industrial Quality Solutions Automate 3D Metrology

2026-05-22 Source: Press release | Translated by AI 1 min Reading Time

Related Vendors

SIMTOS (Seoul International Machine Tool Show)

With the "ScanPort" system, metrology manufacturer Zeiss Industrial Quality Solutions presents an innovative optical 3D metrology system that combines accuracy, flexibility and user-friendliness in one compact system.

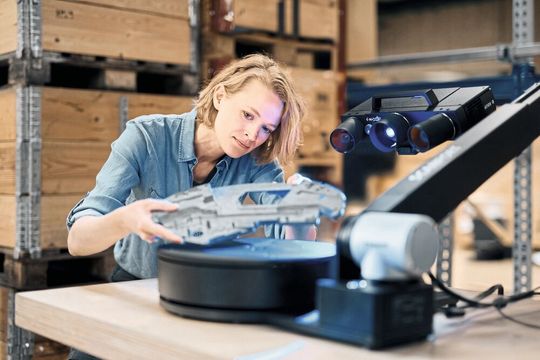

Flexible and universal: The partially automated 3D measurement technology from Zeiss can be used in a variety of ways for scanning prototypes, reverse engineering and measuring in series production.(Image: Zeiss) — Flexible and universal: The partially automated 3D measurement technology from Zeiss can be used in a variety of ways for scanning prototypes, reverse engineering and measuring in series production.
(Image: Zeiss)

The partially automated system is designed for users who expect reliable measurement results without extensive training or complex setups. Based on established technologies, the "ScanPort" measuring system quickly delivers high-precision 3D data. In combination with the comprehensive "Inspect" software, even complex inspection processes can be carried out with just a few clicks: From CAD comparison and mesh editing to trend analysis, Zeiss' measurement software delivers reproducible results at the highest level.

Automated, But Flexible

The system combines a vertically movable axis, a tilting mechanism and a rotation table, which enables true 3-axis automation. This enables optimal lighting and the capture of components from different angles. The modular, mobile design makes it ideal for direct use on the shop floor or at different locations. The integrated scanner can be detached and used separately if required—for example to measure larger components.

Intuitive Operation

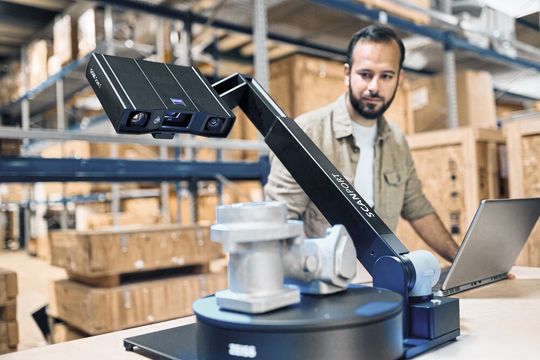

Simply intuitive: In conjunction with the sophisticated "Inspect" software, even inexperienced personnel can quickly and reliably measure components for quality assurance.(Image: Zeiss) — Simply intuitive: In conjunction with the sophisticated "Inspect" software, even inexperienced personnel can quickly and reliably measure components for quality assurance.
(Image: Zeiss)

An outstanding feature of the Zeiss measuring system is its ease of use with the "Inspect" software. Functions such as kiosk mode, workflow wizards and preconfigured scan templates guide even inexperienced users smoothly through the measurement process. Operation is standardized. Accurate measurements can be started with just one click. This not only shortens training time, but also minimizes potential errors.

Reproducible Measurements

The integrated function for reproducing movements ensures that previously performed scans can be precisely repeated. For recurring components, this enables a series-ready inspection strategy with consistent evaluation. Deviations between individual components are automatically detected and visualized so that production trends can be identified and corrected at an early stage.

Universal Use

The "ScanPort" 3D measuring system is suitable for a wide range of industrial applications, such as 3D printing, reverse engineering, casting and plastics, tool manufacturing and the creation of virtual models and digital twins. The simple one-shot calibration with a length standard calibrated in accordance with DAkkS/ILAC ensures continuous measurement accuracy, even for mobile measurements.
