Ideal for Medical Technology Applications Maximum Precision and Smooth Running

From Oriental Motor | Translated by AI 1 min Reading Time

Related Vendor

Stepper motors from Oriental Motor's PKP series offer high positioning accuracy and extremely quiet operation. Due to their properties, the drives are particularly suitable for use in demanding medical technology applications. Leading manufacturers have been using the motors in their devices for decades.

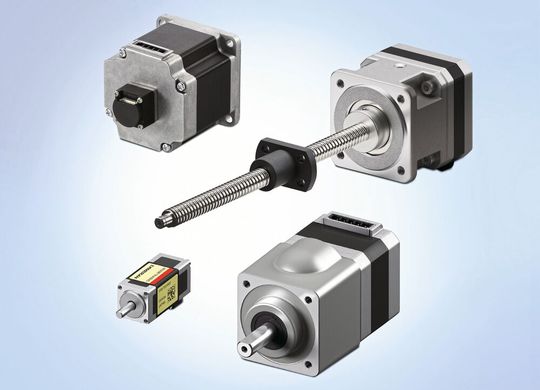

(Picture: Oriental Motor)
(Picture: Oriental Motor)

The stepper motors in the PKP series were developed for applications that require high torques over a wide speed range and maximum repeat accuracy. Their optimized rotor/stator design reduces current consumption and vibrations, ensuring particularly smooth running. In combination with the CVD drivers from Oriental Motor, the drives achieve positioning accuracies down to the sub-micrometer range and are ideal for analytical devices, pumps, diagnostic machines, dosing systems or automated sample handling. The motors are available as 2-phase and 5-phase versions with basic step angles of 1.8° and 0.72° respectively, as well as high-resolution versions with 0.9° and 0.36° respectively. The series comprises seven frame sizes from 0.5 to 3.5 inches; the particularly compact 0.5 inches version is one of the smallest in its class while offering high torque and high precision. Oriental Motor offers numerous options for additional requirements: Motors with single or double shafts, versions with electromagnetic brakes and encoders with 200 P/R to 1000 P/R (optionally up to 4000 P/R). The encoders are extremely compact, especially the 0.5 inches version with only 0.5 × 0.5 inches. In addition, spur gear, Neugart planetary and harmonic drive gearheads as well as adapters for simple combination with ball screws or threaded spindles are available. Together, PKP motors and CVD drivers form an optimally coordinated drive system with high precision, low vibration levels and a compact design. These properties make the combination a reliable solution for demanding applications in laboratory and medical technology as well as in the semiconductor and precision industry.
