The Technical University of Munich (Germany) uses Sensojoints actuators from Sensodrive to build deformable, flexible robots that are not moved by traditional joints, but by ropes or cables. The research team is setting new standards in the modeling and control of cable-actuated continuum robots.

Continuum robots are an exciting robotic technology: their continuously deformable structure opens up new application possibilities—for example in medical technology, for inspection tasks in confined environments or in safety-critical human-robot interactions. At the same time, they pose enormous challenges for research and development, particularly in terms of modeling, state estimation and control.

The Chair of Control Engineering at the Technical University of Munich (TUM) addressed precisely this challenge in a current research project. The aim was to build such a cable-actuated continuum manipulator that would make it possible to measure and directly control tendon forces with high precision—as the basis for innovative model-based control and observer concepts. The research team used Sensojoints actuators from Sensodrive for this purpose.

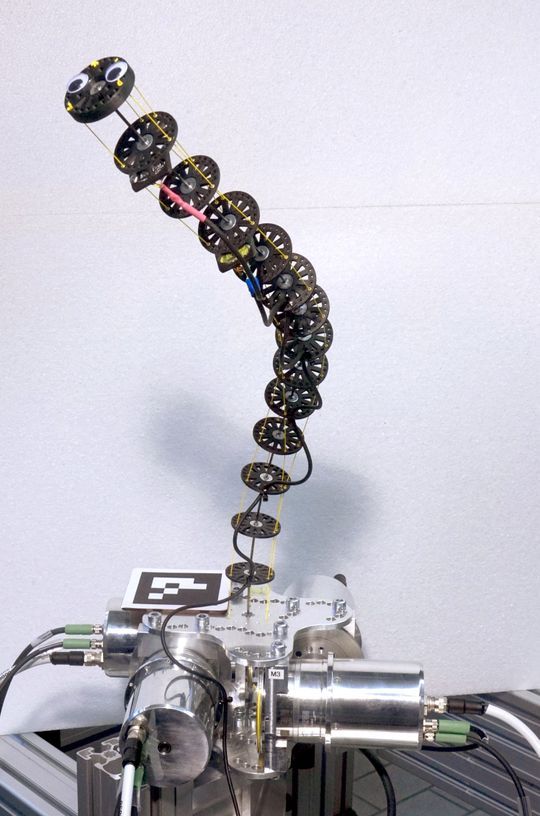

An Experimental Robot for New Scientific Findings

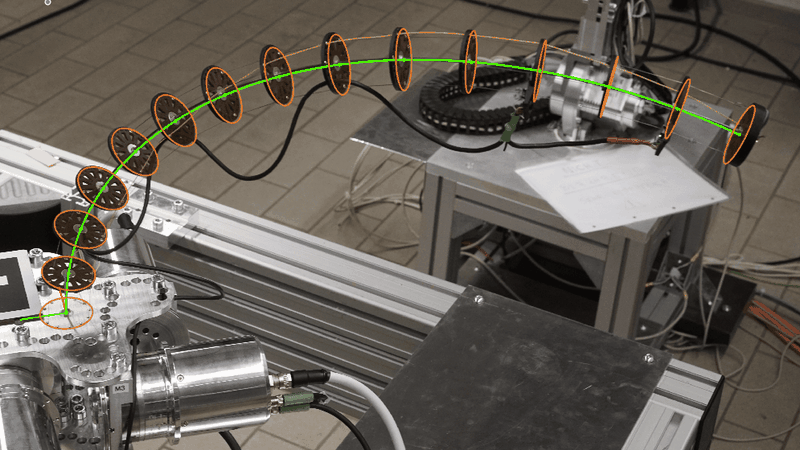

The project focused on the development of an experimental robot system with an elastic backbone and cable-based actuation. Unlike conventional industrial robots, the continuum robot does not have discrete joints, but deforms continuously over its entire length. The movement is generated by several tendons, the tension of which must be adjusted in a targeted manner.

For research, this means that realistic models can only be validated, conditions reliably estimated and external faults detected if the output-side torques and forces are precisely measured and controlled. This is precisely where the limits of previously used drive solutions lay, which only allowed indirect torque control via motor currents.

Actuators As An Enabler for the Research Project

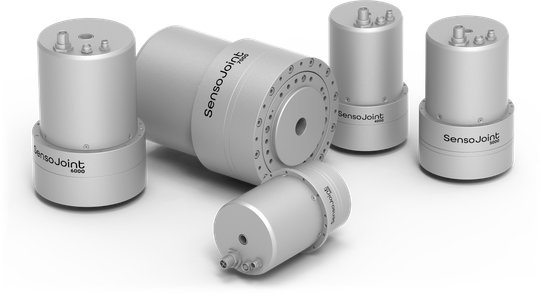

The TUM research team opted for the Sensojoints from Sensodrive for the new test setup. The decisive factor was the overall package of direct, high-resolution torque measurement, powerful advanced torque control and an open and transparent system architecture.

Only through the direct control of the output-side torque—including compensation of gearbox effects such as friction or ripple—was it possible to set up the continuum robot so quickly and use it productively. Integration was also a success factor: thanks to the documentation and support for common standards such as CiA402, the hardware and software could be prepared before delivery. This shortened the time from planning to commissioning.

Continuum Robot Delivers Precise Measurement Data

The added value of the actuators became apparent during operation: the precise torque measurement on the output side enabled a previously unattainable analysis of the system behavior. At the same time, effects that falsified previous test setups—such as uncompensated gear friction—could be effectively eliminated.

The experimental data obtained in this way formed the basis for the validation of new discrete modeling and observer approaches and were incorporated directly into a scientific publication. The continuum robot thus became not only an experimental setup, but also a reliable reference system for further research.

Partnership With A Focus on the Research Question

The TUM team benefited from the technical advice, accessibility and transparent documentation: instead of a black box solution, the scientists had a system at their disposal whose behavior they could understand in detail and use in a targeted manner. This proved to be an advantage in a scientific context.

From the perspective of the project managers, the supplier's interest in the research question was particularly important for the collaboration. Solutions were not "sold", but developed together—with the clear aim of creating the best possible technical basis for research.

Future Prospects: From Modeling to Control

Following successful work on model identification and state estimation, the focus of the project is now increasingly shifting towards model-based control of the continuum robot. The actuators used will continue to play a central role in this. The project shows how standardized, torque-controlled drive solutions can be used to implement complex research platforms in the shortest possible time—without compromising on precision or quality.
