A stretchable sensor made of liquid metal and special plastics makes robots significantly more resilient. The system behaves like human skin, withstands mechanical damage, and repairs broken conductive paths on its own through heat.

Engineers are rapidly advancing robotics and wearable electronics. However, they often encounter a central issue in everyday applications: the installed electronics remain rigid, bulky, and fragile. Whether humanoid robots or modern leg prosthetics—manufacturers almost universally use rigid circuit boards and bulky components. In industrial environments, immovable cables are often attached to robot arms, not only obstructing visibility but also posing a real safety risk.

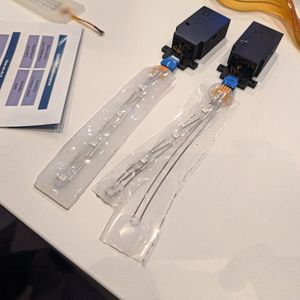

A new concept by researchers from the research institute Imec and several Belgian universities addresses these issues with soft, structural electronics. The technology is based on a carrier material and liquid metal, specifically an alloy of gallium, indium, and tin. This material remains consistently liquid at normal room temperature. The metal directly connects electronic components such as LEDs and securely embeds them into the stretchable material.

Gallery

Gallery with 6 images

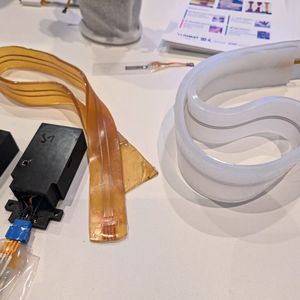

This innovative design behaves like artificial skin in practice. In initial demonstrations, this skin not only stretches slightly but effortlessly extends to multiple times its original length. When a robotic arm grips and bends significantly, the electronics seamlessly adapt to the movement without causing error-prone cable breaks.

Easily Heal Mechanical Damage

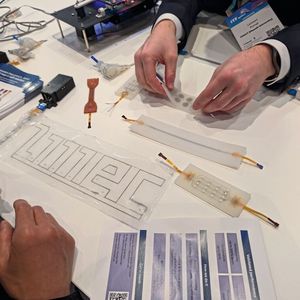

In tough operational environments, damage is rarely avoidable. However, similar to biological skin, this new development simply repairs severe damage itself. The developers use special polymers that reseal cracks with mild heat when users bring the severed ends together. A key factor is the liquid metal inside: although it remains physically liquid, it does not leak out of the material when sharply cut. The metal has an extremely high surface tension and immediately forms a thin, sealing oxide layer upon exposure to air.

As soon as the severed components make contact again, the metal inside flows back together and fully restores the original conductivity. This self-healing process significantly conserves industrial resources. The developers emphasized the practical benefits of this effect during their presentation at the Imec ITF World: "This means that your devices have a longer lifespan and require less maintenance."

Gesture Control for Soft Robotics

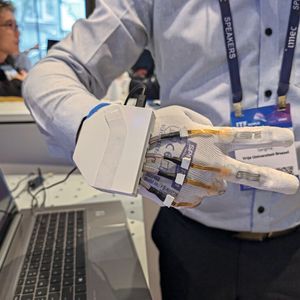

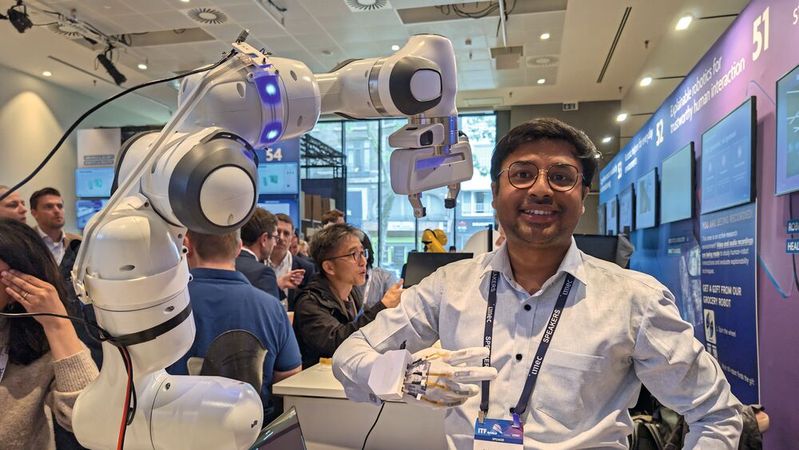

In addition to pure power and signal transmission, the liquid metal also functions as a precise sensor. To demonstrate this, the researchers integrated such structural sensors into the individual fingers of a glove. As soon as the wearer moves their fingers or makes a fist, the system measures the exact mechanical strain. Computer algorithms translate these fine movement patterns directly into mechanical actions of a real robot. When the person closes their hand, the machine's gripper closes simultaneously and precisely.

The future applications for this technology extend far beyond traditional factory floors. The team plans to integrate complex microchips and compact batteries to create smart patches for medical monitoring of body functions or wounds. In agriculture, these stretchable sensors could continuously monitor the growth of fruits until final harvest. Additionally, integrated pressure sensors could provide future robots with a sense of touch, allowing the machines to precisely feel when they touch plants or fragile objects. In the long term, surgeons are also expected to benefit from the technology, enabling them to control surgical robots with natural gestures in an absolutely safe manner.
