Whether it’s measurement systems, machine modules, or the fingers of a humanoid robot hand: In many applications, there is a growing need for greater performance, precision, and reliability within an ever-smaller installation space. Miniature gearboxes and microdrives are emerging as key technologies in this context.

Miniature gearheads and micro-drive solutions make it possible to achieve precision, zero backlash, and high power density in confined spaces. Applications range from general mechanical engineering, dental milling machines, surgical robots, and metrology to humanoid robot systems. Among the latest miniature gearheads on the market are the four new CSF-Mini gearhead variants in size 7 from Harmonic Drive.

When Every Millimeter Counts

The trend toward miniaturization is no longer a niche topic: Modern production facilities, optical measurement systems, and many medical devices require increasingly compact assemblies. At the same time, neither dynamic performance nor accuracy can be compromised. In metrology in particular, motion errors are immediately noticeable, as even minimal deviations can affect the quality of a measurement. For this reason, backlash-free precision gearheads—including the PMG series from Harmonic Drive—are frequently used in coordinate measuring machines, optical measurement systems, and wafer inspection systems.

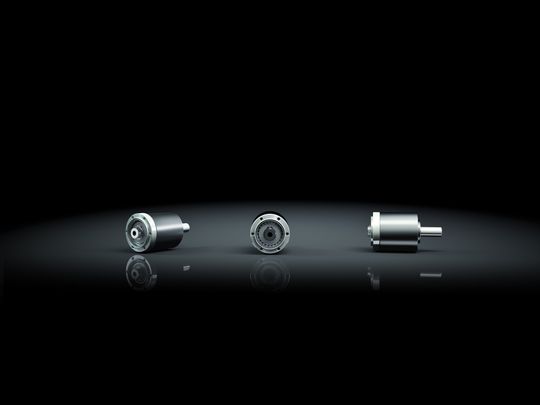

The gearheads combine a gearhead assembly with an integrated output bearing, offering compact dimensions and low weight. Depending on the size, they provide maximum torques ranging from 0.3 to 14.7 Nm. The product family includes sizes 5 through 14 with reduction ratios ranging from 50:1 to 110:1. They are particularly well-suited for applications with high demands on positioning accuracy and long-term stability.

Backlash-Free Miniature Gearboxes in New Variants

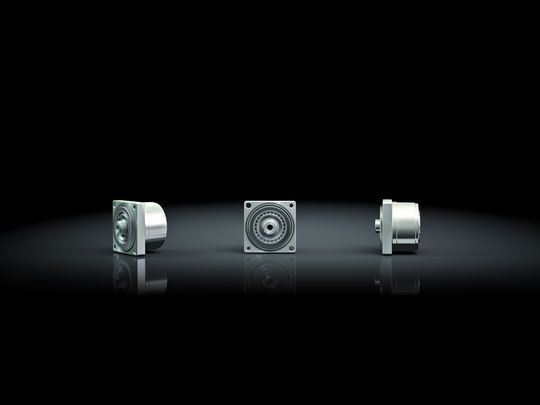

The CSF-Mini miniature harmonic drives are ideal when axial compactness is required. Harmonic Drive achieves this through the short-profile HFUC mounting kit in combination with a compact four-point bearing, which is characterized by high concentricity and radial runout accuracy. The series delivers the precision of a backlash-free shaft gearbox in a size comparable to a large shirt button (13 x 13 millimeters / (0.51 × 0.51 inches in size 3). Thanks to their lightweight aluminum housings, they are also suitable for lightweight construction applications and dynamically moving axes. As shaft-type gearheads, these miniature gearheads transmit comparatively high torques while maintaining a compact design.

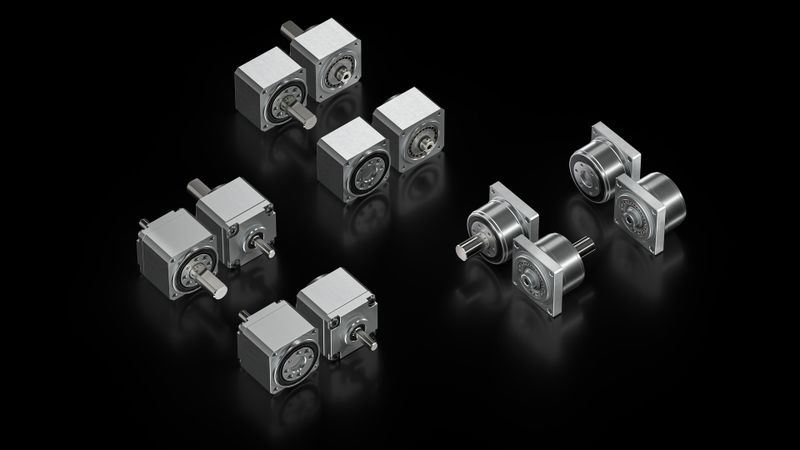

In mid-2026, Harmonic Drive completed the CSF Mini gearhead series with four additional models in size 7. The gearheads are now also available in size 7 in six different variants: with an output flange or output shaft, with an input shaft, or for direct motor mounting. This opens up new design possibilities, particularly for applications with limited installation space.

Miniature Gears in Robotics, Micro-Machining, and Medical Technology

Miniature gearboxes are particularly well-suited for compact robotic systems, where backlash-free shaft-type gearboxes enable precise positioning along multiple axes, since target positions can be approached from both sides without reverse backlash. In measuring machines, miniature gearheads help ensure that probe heads trace component contours with high accuracy and that precise measurement results are achieved. Other applications include micro-machining—such as the manufacture of watch components—and surgical robots, where they enable precise movement of instruments and thus minimally invasive procedures.

Miniature Gears as a Key Technology for Humanoid Robotics

One of the most exciting future applications for miniature gearboxes is humanoid robotics: For humanoid robot hands, the practical size range for integrated finger actuators is typically between about 10 and 16 millimeters in diameter. Actuators in this size range offer a good balance between installation space, torque, and integrability. They can be housed within finger-like structures while simultaneously providing the necessary gripping forces for delicate manipulation tasks.

The worm gear principle is particularly well-suited for this application, as it enables high gear reduction ratios, high torque density, and backlash-free motion transmission. With a high gear ratio, such as 100:1 (as in the CSF-3), a particularly small motor can be selected, resulting in a highly compact drive system. The integrated output bearing directly supports the bearing forces acting on the finger joint.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

Subscribe

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta).

Unfold for details of your consent

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Precision Microtechnology

For micro-drive technology with even stricter requirements regarding installation space and weight, there are specialized companies, such as Micromotion GmbH (part of the Harmonic Drive Group). These often custom-designed drive solutions are required for optical systems, semiconductor manufacturing, medical technology, vacuum applications, and projects in the aerospace industry.

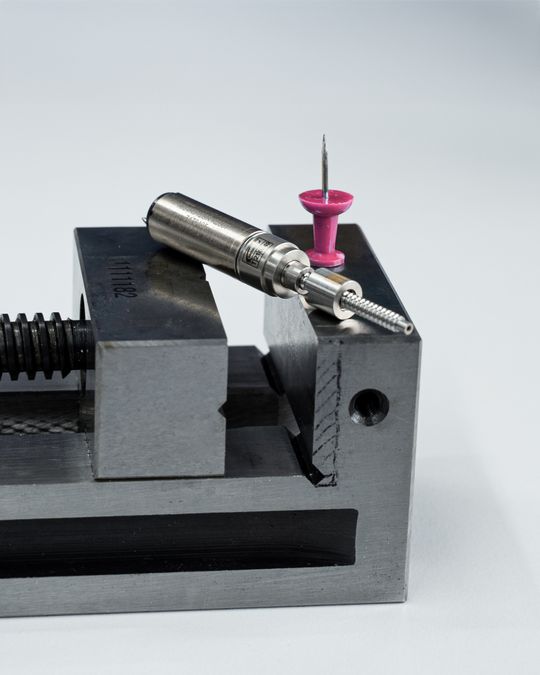

Low-backlash planetary gearheads and backlash-free harmonic drive gearheads are combined with various motor types, such as stepper motors, DC motors, or brushless motors. When used in conjunction with lead screws or eccentrics, these components create high-precision yet extremely compact linear systems. Custom drive solutions with integrated additional functions make it possible to reduce the installation space even further.
