AI-powered object detection requires reliable image data. Specialized GMSL2 modules bridge long cable distances without data loss, even under harsh conditions. This enables precise real-time analyses in autonomous systems.

When AI applications run directly at the edge, the demands on the connected hardware increase significantly. Although the computing power of modern platforms is continuously growing, image processing simultaneously requires high-resolution signals with low latency. In mobile work machines, robots, or production lines, cameras are often located several meters away from the control computer. Conventional interfaces quickly reach their limits over these distances.

The Gigabit Multimedia Serial Link interface technology, or GMSL2, resolves this bottleneck. Over coaxial cables, the technology transmits image data with minimal loss over distances of up to 15 meters. Specialized FAKRA connectors secure the physical connection so that vibrations or electromagnetic field disturbances do not affect transmission.

Good Image Quality Despite Extreme Light Changes

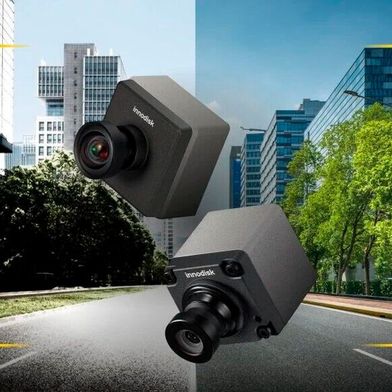

An example of this approach is the GMSL2 camera modules from Innodisk. They operate with the Sony image sensor ISX031 and provide resolutions of up to 13 megapixels. An integrated signal processor balances strong brightness differences. Thanks to high dynamic range and a function to suppress LED flickering, relevant details remain visible even when switching between bright sunlight and dark areas. Pulsed light sources in factory buildings also do not interfere with the analysis. This results in more reliable object detection for the algorithms.

In practice, in addition to signal quality, mechanical durability is crucial. Cameras in harsh environments must withstand dust, jet water, and extreme temperature fluctuations without complaint. Protection ratings up to IP67 or IP69K qualify the modules for continuous use in construction machinery, mining equipment, port vehicles, or autonomous transport robots.

Sensor Fusion Creates Complete Environmental Models

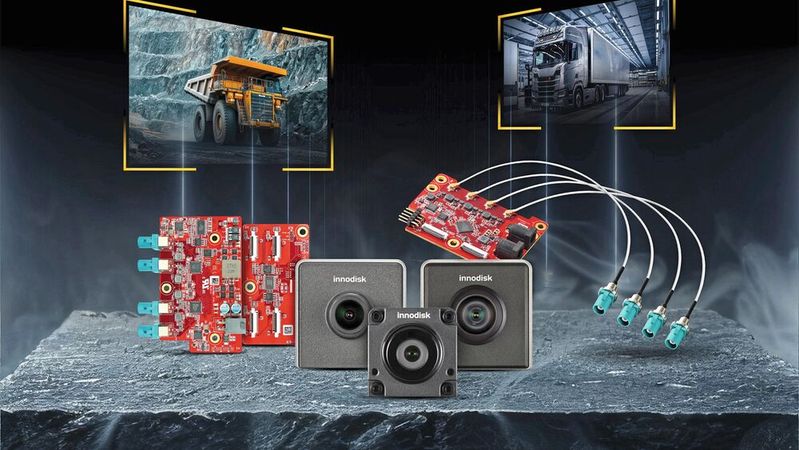

To enable developers to quickly commission the hardware, suitable adapter boards simplify the integration with systems like Nvidia Jetson Orin. This significantly reduces development times. Additionally, modern modules support the synchronous operation of multiple units. Based on this, 360-degree vision systems or sensor fusion can be created, where camera signals are combined with data from radar and lidar sensors. This information forms a precise environmental model that allows autonomous vehicles to make safe navigation decisions.

The trend shows that components are increasingly merging into integrated edge AI systems. Manufacturers combine cameras, accelerators, computers, and matching software into coordinated packages. Closer collaboration between developers of the respective subcomponents creates a stable foundation for automation in logistics, industry, and robotics.
