An improperly matched centrifugal clutch leads to increased wear and higher repair costs. Seven parameters—ranging from engine type to installation space—form the basis for finding the right clutch solution. To save time, this information should be compiled before contacting the clutch manufacturer.

A centrifugal clutch is often just a single component in the powertrain—yet its design plays a decisive role in determining the reliability of the entire machine. For example, if it is undersized, improperly matched to the rotational speed, or not adequately designed for the load characteristics of the machine, this can lead to increased wear, unplanned downtime, or premature repairs. This not only incurs costs for the replacement part itself but can also lead to expensive consequential damage to adjacent components as well as additional expenses for installation and service.

How do centrifugal clutches work?

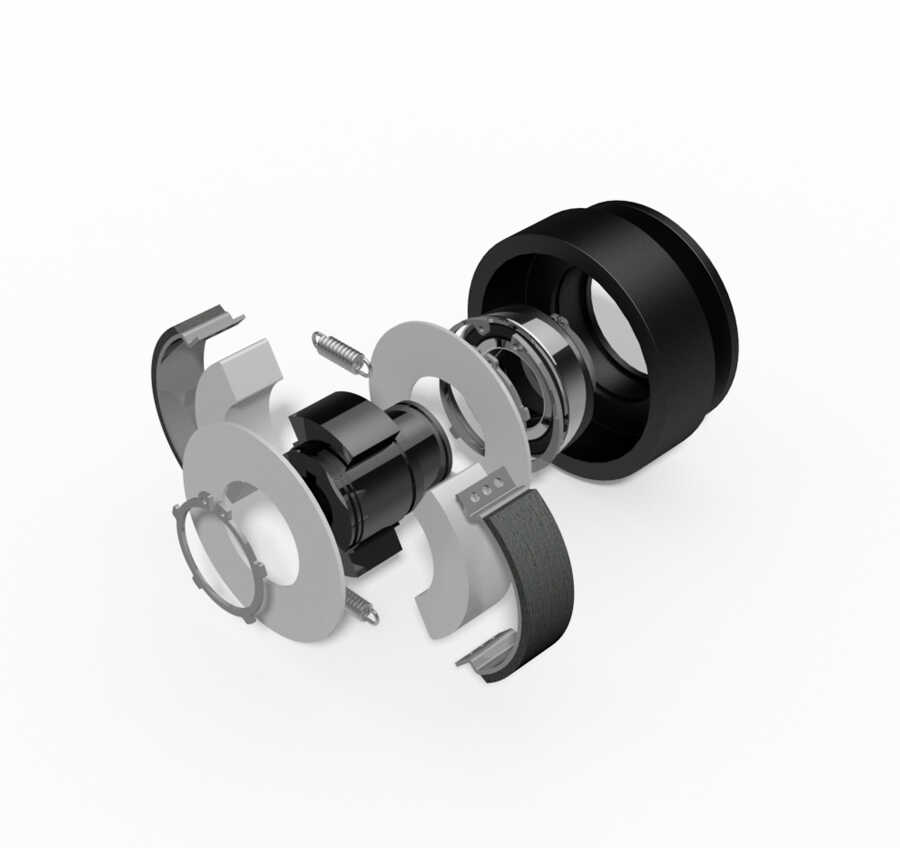

A centrifugal clutch operates based on rotational speed. Below the defined engagement speed, it remains disengaged. As the speed increases, the centrifugal weights overcome the retaining force of the springs, the friction linings come into contact with the housing, and torque begins to build up. During the subsequent slip phase, the driven machine is accelerated to operating speed. Only then is torque transmitted via positive engagement.

Traditionally, centrifugal clutches are used in conjunction with internal combustion engines. Currently, they are also gaining importance in battery-powered devices and in specialized drive systems with electric motors. Regardless of the energy source, their primary function remains the same: speed-dependent engagement. To achieve this, the component is precisely tuned to the speed range, torque, load characteristics, and installation conditions.

A robust design requires a holistic approach. Specifications such as “10-kilowatt motor” or “coupling for a pump” do not provide a complete picture. The type of drive and driven machine, the speed range, the load profile, and the structural conditions all interact.

1. Engine Type and Engine Power

It all starts with the drive. To design the centrifugal clutch, the manufacturer needs information about the engine manufacturer and type, as well as the available engine power in kilowatts or horsepower. The reason is that internal combustion engines behave fundamentally differently from electric motors during startup. The engine’s torque characteristics also influence how the clutch is loaded during ramp-up.

However, engine power alone is not a sufficient selection criterion. It does not indicate what torque is actually available at what speed, nor what load the driven machine generates during startup. Therefore, the engine’s torque curve should always be taken into account during the design process.

2. Idle Speed of the Application

The idle speed represents the lower limit of the operating range. A properly designed centrifugal clutch must be completely disengaged at idle. This means that the spring forces hold the centrifugal weights back so that the friction linings do not come into contact with the housing. If the engagement speed is too close to the idle speed, the clutch may begin to slip unintentionally. This generates frictional work and thus heat, even though the machine is not yet supposed to be operating.

3. Engagement Speed of the Centrifugal Clutch

The activation speed describes the point at which the centrifugal force of the rotating weights overcomes the restraining force of the springs. This activation point can be precisely adjusted by using different spring configurations.

In practice, this means that the clutch must never engage arbitrarily. It must be adjusted so that the engine has already built up sufficient torque to accelerate the driven machine in a controlled manner. At the same time, there must be sufficient torque reserve at operating speed so that the clutch does not unnecessarily return to slip mode even during brief drops in speed.

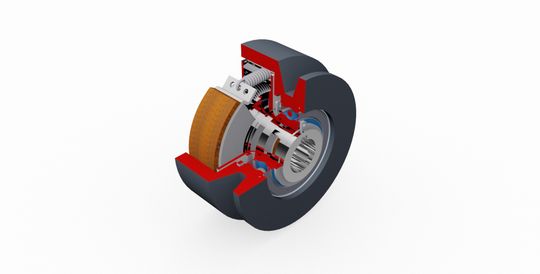

The most important component here is the spring used. When the correct spring is selected, its characteristic curve ensures that the clutch engages only when required. An incorrectly selected spring, on the other hand, can lead to frequent spring breakage or wear out too quickly, which is noticeable as a change in the engagement speed.

4. Operating Speed of the Clutch

The operating speed is important for sizing, since centrifugal force increases proportionally to the square of the angular velocity. As the speed increases, so do the forces acting on the flyweights and the transmissible torque.

Therefore, it is not just the maximum speed that is decisive for the design, but the actual operating range. Key considerations include: What is the speed during regular continuous operation? Are there frequent speed fluctuations? How low can the speed drop under load? This information ensures that the coupling remains slip-free and reliably engaged during regular operation.

5. Maximum Torque and Load Profile

A key question is: How much power does the motor deliver? And: What torque does the centrifugal clutch actually need to transmit? Applications involving high inertia, load peaks, or varying resistances are particularly critical. A fan, a shredder drum, or a compressor exhibits significantly different load behavior during startup than during steady-state operation.

The more precisely this load profile is known, the more precisely the size, friction pairing, and spring design of a centrifugal clutch can be selected. It is particularly worth taking a closer look at the friction lining: By specifically tailoring the lining to the specific operating conditions, it is possible to control the clutch’s wear and transmission characteristics.

6. Power Machine and Operating Conditions

The type of machinery is among the most important pieces of information. Every design reacts differently to vibrations, switching cycles, shocks, high inertia, or frequent start-stop operations. That is why coupling manufacturers need a brief description of the application from the user: What exactly is being driven? How often is the machine started? Does the application run continuously or in cyclic operation? Are there any special environmental conditions? Are there strong vibrations or varying loads? This information helps determine whether a standard design is appropriate or whether, for example, a customized geometry, a different spring configuration, or a special design is required.

Drive Technology

Five Tips to Improve Drive Systems

7. Installation Space and Mechanical Connections

A technically suitable coupling must also be structurally compatible with the machine. Therefore, information regarding the motor shaft or flange, bore sizes, groove widths, shaft lengths, and centering is required to select the coupling. The output side is equally important. The following must be specified here: axial drive or belt drive, the hole pattern, and any user-specific interfaces. Especially with existing machines, the available installation space is often limited. Providing connection dimensions early on helps avoid later modifications to the coupling or the machine.

Good Design Starts with Good Input Data

The function of a centrifugal clutch results from the interaction of many parameters. Spring design, friction material, size, number of centrifugal elements, and operating speed all influence the engagement speed and torque. The more complete the application data is at the start of a project, the faster a technically sound coupling solution can be defined.

Those who compile these seven parameters before the first design meeting will, in practice, shorten the path from the initial inquiry to the right coupling solution—regardless of whether the end result is a standard model or a custom design.

* About the Authors: Axel Gläser, Managing Director at Amsbeck Maschinentechnik GmbH, works daily on the design of centrifugal clutches, centrifugal brakes, and multi-disc clutches for the machinery and plant engineering industries. Michael Berghaus is a technical expert in the design of centrifugal clutches and drive components.
