Especially in the field of electric commercial vehicles, dynamic growth is evident through technological innovations. The new Charx connect professional charging plug has initiated the leap of CCS charging into the megawatt league.

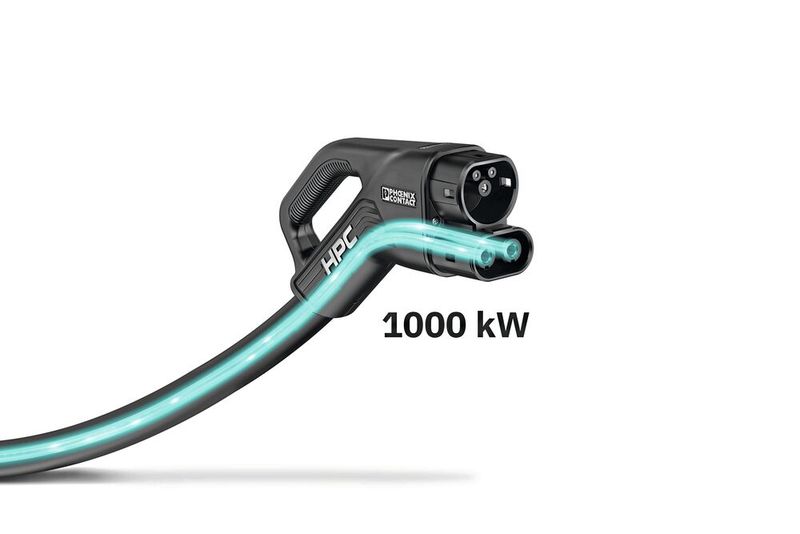

Reducing long charging times for commercial vehicles and cars: Fast charging stations replenish several hundred kilometers of range within a few minutes with the megawatt charging cable Charx connect professional.(Image: Phoenix Contact) — Reducing long charging times for commercial vehicles and cars: Fast charging stations replenish several hundred kilometers of range within a few minutes with the megawatt charging cable Charx connect professional.
(Image: Phoenix Contact)

The electrification of road traffic, especially commercial vehicles, is an important step towards the mobility transition. Advances in battery technology and the expansion of charging infrastructure are making this development increasingly practical. Phoenix Contact E-Mobility supports the transformation of the commercial vehicle sector to electromobility with its CCS megawatt charging cable Charx connect professional. This enables the fast charging of large commercial vehicle batteries with a power of up to 1 MW, promoting the acceptance and practical use of electric commercial vehicles.

With a power of 1 MW, even large commercial vehicles in long-distance logistics can be charged within a reasonable time using the CCS standard. This advancement is important for both the acceptance and practical use of electric commercial vehicles. Electric commercial vehicles are considered the most cost-efficient solution for logistics in the long term due to lower operating costs and less maintenance effort.

Electrification in Logistics

Logistics companies are often critical of electrifying their vehicles. This concerns the high acquisition costs, the sometimes still expandable ranges of e-trucks, and the comparatively small number of available models. In addition, the charging infrastructure, as a fundamental requirement, must be reliable. Downtime and delays caused by defective, unavailable, or throttled charging infrastructure are costly. Reliable products for a reliable charging infrastructure network are essential.

Long-distance logistics, in particular, relies on large battery capacities and reasonable charging times. After 4.5 hours of driving, a 45-minute break is mandatory, which must be sufficient for recharging the battery. The HPC upgrade transfers 1 MW in boost mode for 5 minutes at an ambient temperature of 40°C.

HPC Charging with Reimagined Cooling

Through consistent development of HPC technology and years of experience in high power charging, the specialists from Schieder have significantly increased the power limits. This includes cooling, optimized cable structures, and real-time temperature monitoring. The second generation of liquid-cooled CCS charging connectors takes HPC charging to a new level: in boost mode, 1,000 kW and a continuous 800 kW are transmitted.

This is made possible by an improved cooling concept. Insulated cooling lines are used, which are directly wrapped with copper foils. This creates a significantly larger contact surface between the copper and the cooling medium. The contacts are also equipped with an insulating foil. This allows the coolant to reach the hottest contact points directly, efficiently dissipating the heat. The coolant is an environmentally friendly and low-maintenance water-glycol mixture, which has already proven effective in the first generation of cooled HPC charging connectors.

Comfortable Maintenance and Safety

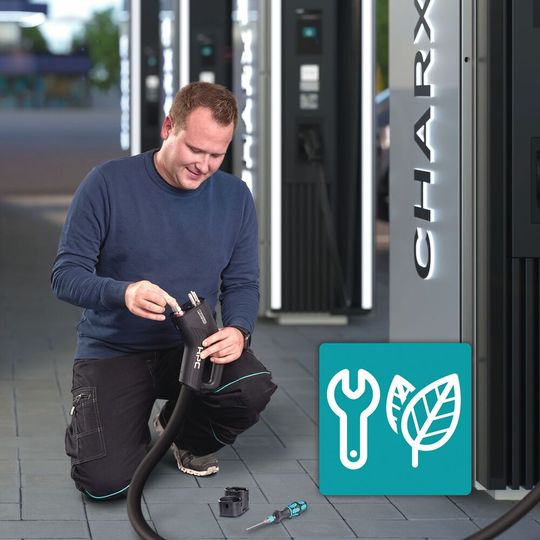

Image 1: Replacement of the connector face and contacts of a CCS megawatt charging cable during on-site maintenance.(Image: Phoenix Contact) — Image 1: Replacement of the connector face and contacts of a CCS megawatt charging cable during on-site maintenance.
(Image: Phoenix Contact)

The plug face frame and all contacts (DC+, DC-, PE, CP, PP) of the HPC charging connector can be individually or entirely replaced on-site at the installed charging station. Opening the housing or draining the coolant is not necessary for this. This allows the service technician to maintain the charging cable cost-effectively and easily. Since the calibration capsule remains untouched, re-calibration of the charging connector after the repair is not required.

The charging connector offers high safety due to its robust design and integrated real-time temperature monitoring. Monitoring with Pt-1000 sensors ensures that the charging connectors do not overheat. Another safety feature is the integrated leak detection for coolant. A leak is detected by the insulation monitor of the charging station even before the charging process begins. Since the insulation monitor is required by standards, this safety feature does not need additional electronics and incurs no extra costs.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

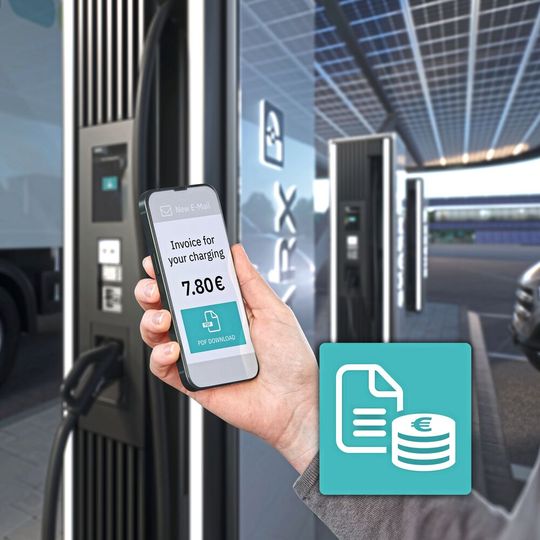

Image 2: Integrated four-wire measurement technology enables billing in accordance with the Measurement and Verification Act.(Image: Phoenix Contact) — Image 2: Integrated four-wire measurement technology enables billing in accordance with the Measurement and Verification Act.
(Image: Phoenix Contact)

To measure the power loss in the charging cable, the electrical resistance is determined using four-wire measurement technology. This is crucial for compliant billing according to the Measurement and Verification Act. All prerequisites for reliable and legally compliant billing of charging processes are thus ensured.

Future Prospects and Upgrades

With the CCS charging plug, many electric commercial vehicles are quickly ready for use again on the DC charging side. Upgrades to the Megawatt Charging System (MCS) will follow. (kr)

*Julia Krüger is a Marketing Communications employee at Phoenix Contact E-Mobility in Schieder-Schwalenberg, Germany.
