Cascaded Ideal Diodes Solve Power Supply Issues in 48-V Electric Vehicles

Power Tip Cascaded Ideal Diodes Solve Power Supply Issues in 48-V Electric Vehicles

2026-08-19 From Shiven Dhir and Rakesh Panguloori* | Translated by AI 3 min Reading Time

48-V systems bring new challenges for redundant ORing supply in power distribution stages. The tip introduces a cascaded configuration with ideal diodes and a transient clamping network for the grounding path. This enables a system design with FETs rated for 60 V and provides sufficient voltage headroom for switching transients.

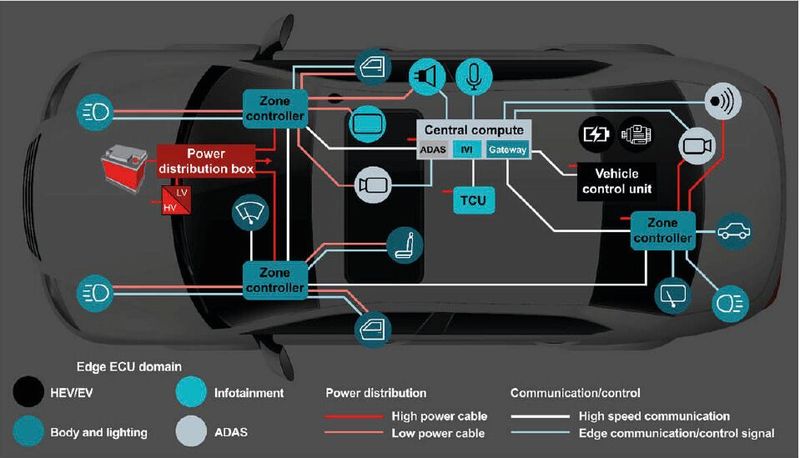

Electric vehicles: Structure of the zone architecture in a modern vehicle.(Image: TI) — Electric vehicles: Structure of the zone architecture in a modern vehicle.
(Image: TI)

The addition of 48-V onboard networks to conventional 12-V systems brings fundamental changes for hybrid and electric vehicles. Among other things, in zonal architectures, electronic components are grouped based on their location in the vehicle rather than their function. Less complexity and more modularity are the advantages for OEMs.
