sponsoredWith Smoke Detector Technology The Rearview Mirror Transformed into a Sensor and Interface

From the innovation inside the smoke detector to a platform for vision, safety, and connectivity.

It all began with a simple observation—and a component that hardly anyone associates with automotive innovation: a smoke detector. From the expertise in measuring light and reliably interpreting signals, Gentex developed over decades a platform that today goes far beyond mirrors: vision, safety, and connectivity in the vehicle interior. The company represents a unique type of progress—subtle, integrated, and effective. What started as a manufacturer of fire protection products in the 1970s is now a globally leading provider of electro-optical and electronic systems, whose benefits often become noticeable only when riding in a vehicle without Gentex products installed.

Safety as Origin and Guiding Principle

Gentex was founded in 1974 in Zeeland, Michigan (USA), and initially focused on fire protection technology. Early on, the company embraced a theme that remains a guiding principle across all product fields to this day: safety. Gentex developed, among other things, photoelectric detectors and is considered a pioneer in dual-sensor smoke detectors. This not only laid the foundation for technical expertise in the areas of sensor technology and electronics but also for a culture of precise and reliable development.

The fact that a fire protection product sparked the later core innovation is one of the often-cited "aha moments" in the company's history. Founder Fred T. Bauer realized that a component or principle from smoke detector sensor technology could be used to automatically reduce glare from headlights in the rearview mirror.

The First Major Disruption: Automatically Dimming Mirrors

In 1982, Gentex introduced the first mechanical version of an automatically dimming rearview mirror, solving a common problem: dangerous glare during nighttime driving. The next technological leap came in 1987 with the shift from a mechanical to an electrochromic solution: an electrochromic gel between two layers of glass enables seamless, demand-driven dimming, which occurs not as an "on/off effect" but as a finely adjustable adaptation.

This innovation was more than just a comfort feature: it addressed an underestimated safety risk in road traffic and offered a brief "visual recovery" after glare, which (primarily due to the Troxler effect) can feel like a temporary blind flight. Gentex transformed a mirror into an active safety system, laying the foundation for a new product category in which the company continues to set standards to this day.

From Component to Platform: The Mirror as an Interface

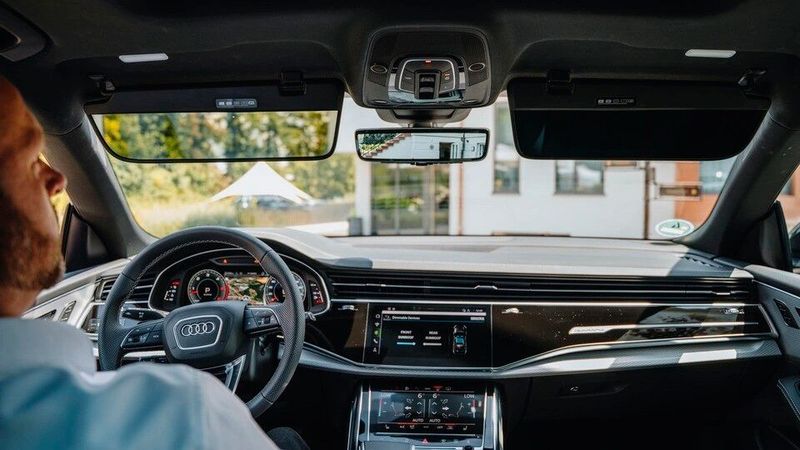

Over time, it went beyond just dimming. The Gentex rearview mirror gradually became a technology platform: displays, signals, light and audio functions, microphones, cameras, and assistance components were integrated. Much of this can be intuitively placed in the mirror since it is already in the direct field of view.

The company's key figures demonstrate how strong the platform concept has become. Gentex estimates its market position at approximately 78 percent market share for interior electrochromic mirrors and cites an annual production of nearly 45 million automatically dimming units, presence in over 650 vehicle models, and supply relationships with more than 36 OEM customers.

Gallery

Forward Vision: SmartBeam and the Trend towards Camera-Based Assistance Functions

The strategy of improving in-vehicle vision through light measurement does not stop at the rear. An important milestone in the company's history is “SmartBeam^®,” a camera-based high-beam assistant that automatically switches the headlights between low beam and high beam. Gentex began delivering SmartBeam as early as 2004 and reached the milestone of one million systems delivered by 2009. Today, almost all vehicle classes feature automatic high-beam or matrix light systems that operate based on the same principle, significantly enhancing comfort and safety during nighttime driving.

For Gentex, this development was strategically important: The more OEMs design assistance functions around camera/sensor stacks, the more crucial the ability becomes to combine optics, computational logic, packaging, and automotive quality into an integrated system. This end-to-end integration is precisely what Gentex emphasizes as one of its core competencies—from the imager to the software to the display.

Digital Vision: The Moment the Mirror "Learned" to See

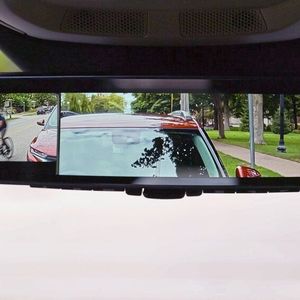

This evolution of recent years becomes clearly visible with "Gentex Digital Vision." The idea behind it was to enhance the classic mirror with cameras and an integrated screen, creating a hybrid system that switches from traditional reflection to a panoramic video view when needed.

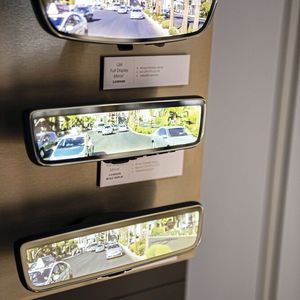

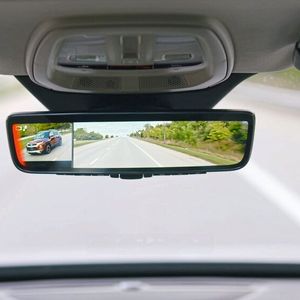

The centerpiece of this evolution is the so-called Full Display Mirror^® (FDM^®): In one mode, it functions as a traditional rearview mirror that continues to dim automatically. In the other mode, it serves as a display, providing an unobstructed view to the rear. This is useful when headrests, passengers, luggage, or a narrow rear window would limit visibility. The dual-mode logic is not only convenient but also a safety feature: even if the camera or display is compromised—for instance, due to dirt, ice, or malfunctions—the mirror mode remains available as a "failsafe."

On this basis, Gentex is developing further Digital Vision systems such as camera monitoring systems, mirror-integrated dashcam functions, or multi-view solutions for trailer operations. The key point: Gentex does not position itself as a "black-box supplier" but as a partner capable of designing imagers, software, display integration, and vehicle integration specifically tailored to OEM requirements.

With the transition from analog to digital vision, the rearview mirror ultimately became a control center. Reuters described this approach in 2015 as a strategic move from a traditional parts supplier to a provider of high-tech vision systems. General Motors was set to be the first automaker to implement the FDM in the 2016 model year Cadillac CT6 according to this report.

How much the system has scaled is demonstrated by Gentex's own delivery statistics: 3.19 million FDM units in 2025 (after 2.96 million in 2024 and 2.44 million in 2023). This indicates that digital rear vision is evolving from a premium feature to a broader option.

"If it's Glass, We Can Dim It": Dimmable Glass as a Growth Area

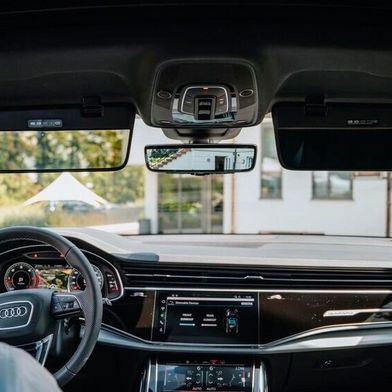

While Digital Vision digitizes the mirror, Gentex expands the application areas of its electrochromic expertise. This includes dimmable roofs, sun visors made of dimmable glass, head-up displays, and sensor covers. These applications reduce glare, improve visibility, and enable new interior layouts.

Specifically, Gentex reports securing the first OEM customer for dimmable sun visors. According to the company, series deliveries are planned to start in 2027.

Aerospace as Technology Transfer: Electrochromics beyond the Automotive Sector

For Gentex, the move into aviation is more than just a foray into a "showcase" segment. It demonstrates how the company consistently transfers its core competency—electrochromic systems for light control—to new applications. Just as the light sensing technology derived from smoke detector technology once paved the way into the automotive industry, electrochromics is now being used for large, dimmable cabin windows.

Gentex's dimmable aerospace windows are available in various commercial aircraft, such as the Boeing 787 and 777X as well as the Airbus A350. They provide better control of cabin light and heat load while reducing maintenance compared to mechanical window shades. According to the company, Gentex has delivered more than 50,000 electronically dimmable aircraft windows to the aviation market.

"The difference lies in our system integration: We master the entire chain from design to validation to industrial production—transforming innovations into series-ready safety and comfort functions in automotive quality."

Neil Boehm, COO and CTO, Gentex Corporation

Connectivity: HomeLink and the Bridge from Car to Home

In addition to "vision," "control" has become the second major focus area: "HomeLink^®" is Gentex's most well-known connectivity brand—a vehicle-based system for controlling garage and gate doors, locks, and other smart home functions. Gentex acquired HomeLink in 2013 from Johnson Controls. The company had already been integrating HomeLink into mirrors for years and secured access to customers and intellectual property through the acquisition.

In its current stage, Gentex describes HomeLink as a versatile car-to-home platform and outlines its evolution from classic radio frequency systems to long-range Bluetooth and cloud connectivity—including operation via mirror/overhead buttons or through infotainment integration, Apple CarPlay, and Android Auto.

Innovation Machine: Patents, Processes, Scaling

Gentex continuously reinforces its commitment to innovation with intellectual property and scalability. In its 2025 annual report, the company cites 4,384 patents and trademarks (including U.S. and foreign shares) as well as hundreds of new applications. Added to this is industrial implementation: Gentex emphasizes high-volume electronics manufacturing and the ability to integrate complex modules from the fields of chemistry, glass, sensors, and software with automotive quality.

Outlook: Where the Journey is Headed—when Change Becomes a Tailwind

What Gentex learned back in the 1970s continues to run like a thread into the future: technology migrates—from one application area to the next, from an idea to a series product. First, it was the sensor technology from fire protection that found its way into the mirror. Today, it is the next shift within the vehicle that opens new doors: cameras, more automation, more software. This changes the familiar logic of the "mirror world"—but for Gentex, it is above all a signal to expand its playing field.

Because it is precisely where vision is no longer just reflected but digitally interpreted, where the interior and driver condition are monitored, where glass surfaces darken intelligently, and where the car becomes a connected part of everyday life, that Gentex begins its next chapters: with digital vision systems, driver and interior monitoring, large-scale dimmable applications, growing connectivity—and a mirror that is far more than just a mirror: an interface.

Strategically, Gentex summarizes this course within a long-term framework. The focus is on further expanding its position in the automotive business, transferring its core competencies to new markets, and developing the organization to reliably turn ideas into industrial reality. Innovation that not only impresses but goes into series production.
