With electronics becoming smaller, more tightly packaged, and subjected to more demanding conditions, 3D printing technology continues to prove itself as a viable alternative to traditional manufacturing processes. Here, Jake Collins, Senior Applications Engineer at Boston Micro Fabrication, explores the advantages that high-precision 3D printing brings to electronics prototyping and production, and shares expert guidance for those evaluating it as a potential technology solution.

From connectors and sensors to advanced packaging elements, the need for highly precise, miniaturized components is accelerating as electronic devices become increasingly compact and sophisticated. Ongoing miniaturization, rising component density, and faster data transmission speeds that generate additional heat are among the key challenges confronting today’s electronics designers.

As a result, conventional manufacturing techniques are increasingly challenged to meet modern demands, often resulting in extended lead times, elevated expenditures, and rigid design limitations. In response, a growing number of electronics manufacturers are adopting 3D printing as a more dynamic and economically viable alternative. Micro-scale 3D printing technologies, specifically Projection Micro Stereolithography (PµSL), have emerged as the preferred solution, delivering the precision and architectural versatility needed to keep pace with the rapid pace of product evolution.

Accelerating the Prototyping Phase Through 3D Printing

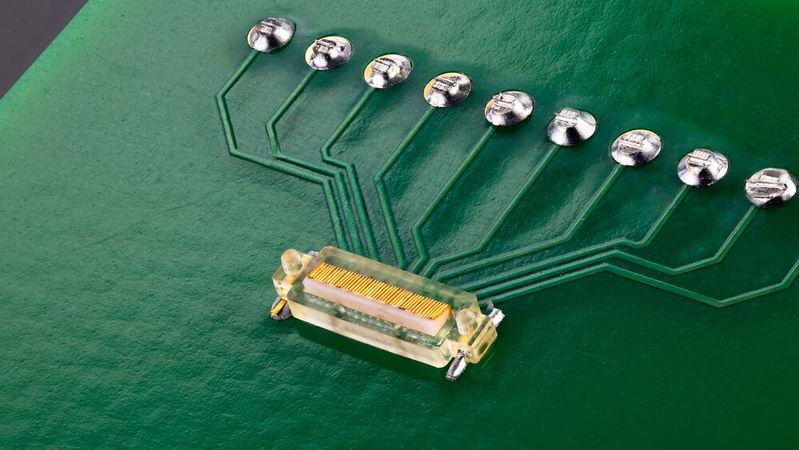

One of the paramount advantages of micro-precision 3D printing is its capacity to compress the design-to-production lifecycle. Unlike conventional approaches such as micro injection moulding, which often require 10 to 12 weeks to produce critical components, 3D Printing effectively circumvents traditional bottlenecks. This facilitates expedited production schedules and enhanced agility for design iterations. By enabling rapid iterative cycles without depending on physical moulds and tooling, 3D printing empowers manufacturers to fine-tune designs swiftly without incurring costly delays.

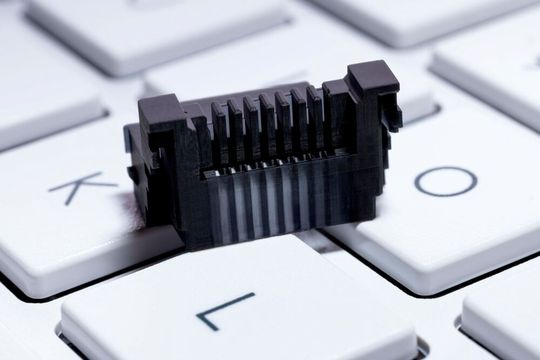

A compelling illustration of this capability is a recent collaborative project our organisation conducted with Hirose Electronics, a manufacturer of high-performance electrical connectors. Tasked with the rapid prototyping of circuit connectors for their next-generation product line, Hirose faced the familiar obstacles of  long lead times, high tooling costs, and the inherent risks of design rigidity. Relying on standard micro injection moulding would have severely decelerated their innovation trajectory, prompting their strategic pivot towards 3D printing.

This pivot empowered Hirose to quickly iterate on their connector designs, test multiple versions, and finalize production-quality prototypes much faster than before. The flexibility of 3D printing allowed them to make design changes on the fly—without the costly delays associated with retooling. This capability drastically reduced their overall prototyping time, creating a faster and more efficient path to validation while saving on both costs and lead time.

Benefit from the Structured Approach

If you happen to be a manufacturer looking to integrate 3D printing within your operations and, I would always advise taking a structured approach to ensure you maximize the benefits.

Commence by identifying specific product components that demand extensive design iterations or currently impede your existing manufacturing workflows. Subsequently, , evaluate your design requirements, checking for precision tolerances and material needs—highly precise 3D printing is ideal for small, intricate parts. I would also definitely recommend that, before moving to full production, you request a sample part from a 3D printing provider to see how it can accelerate your prototyping.

Following the finalization of your prototype, the transition to production is straightforward, and the same flexibility and accuracy that make 3D printing ideal for prototyping will continue to deliver benefits during full-scale production.

Expanding Production Volume Without Compromising Quality

Naturally, it’s imperative to verify that the materials you used during prototyping can handle the demands of production. Ensure that they meet durability and performance standards for long-term use, and also that they conform to any necessary heat or mechanical-resistance standards.

Run small batches to ensure your printer can replicate high-quality results consistently across multiple units. Consistency in precision, tolerances, and surface finish is key when scaling up.

Furthermore, to maximize efficiency for production, it’s necessary to standardize your processes and refine printer settings. Focus on designs that may change in early production or where 3D printing offers lower costs than traditional methods.

Finally, always monitor your production operations and look for ways to improve where possible, for example, using data from initial production runs to fine-tune your process.

Key Considerations for Integrating 3D Printing

By integrating 3D printing, it’s genuinely possible to reduce prototyping time by as much as 60-90% and cut costs by 50-70%, depending on the complexity and volume of your project. It’s also widely acknowledged that the technology is ideal for parts with evolving designs, where it delivers a better cost per unit compared to traditional methods.

To commence this transition, identifying a pilot project is essential. Select a specific component that can benefit from quicker design iterations—such as connectors, sensors, or other small, intricate parts—where traditional manufacturing methods are causing delays.

When it comes to the 3D printing technology itself, it’s important to thoroughly evaluate the different options based on your specific needs. For example, with part size and complexity par for the course in electronics manufacturing, can the printer handle the detailed, small-scale parts required for the application in question? And does the technology itself offer the fine detail needed for reliable performance in electronics components?

Ultimately, once the technology is in place, plan your transition and set a clear timeline to go from prototyping to production. As I mentioned previously, high-precision 3D printing’s flexibility eliminates the need for retooling, enabling a smooth transition to full-scale production.

Clearly, as electronics continue to shrink and functional demands grow, micro‑scale 3D printing is emerging as a catalyst for the next wave of innovation. The ability to create complex, micron‑level geometries is redefining what designers can achieve across an ever-expanding number of components As the industry moves toward more integrated, compact, and application‑specific designs, high-precision 3D printing will continue to play a central role in enabling breakthroughs that were previously out of reach - driving a future where innovation is limited only by imagination, not manufacturing constraints.

*Jake Collins is Senior Applications Engineer at Boston Micro Fabrication, the global leader in micro-precision 3D printing, delivering advanced manufacturing solutions for applications that demand micron-level resolution, accuracy, and precision.
