Superfinishing is a cutting process with surface contact between the tool and the workpiece – unlike turning or grinding. Depending on the workpiece shape, superfinish stones, tapes, or both are used to achieve perfect surfaces.

Definition and Meaning

Superfinishing is a metalworking process that enhances surface quality and workpiece geometry. In this process, only a thin, amorphous surface layer is removed using a grinding stone or grinding belt. Unlike polishing, which often creates a high-gloss finish, superfinishing achieves an exceptionally fine and uniform surface structure. This method is characterized by high precision and ensures an extremely smooth, planar surface.

Superfinishing is of great importance to the industry because it significantly improves the functionality and durability of components. It is used to reduce friction and wear, increase the load-bearing capacity of surfaces, and optimize lubricant distribution. As a result, sectors such as the automotive, aerospace, and medical industries benefit from more durable and efficient products.

This precise improvement in surface quality makes superfinishing an indispensable process in high-precision manufacturing, which demands the highest standards for component quality.

How does Superfinishing Work?

The functioning of superfinishing is based on the precise machining of workpiece surfaces, in which only the roughness peaks are removed without significantly altering the shape or dimensions of the workpiece. The process typically uses special abrasive belts or stones that oscillate or move with defined motions across the surface.

Essential features are:

• Machining in the micrometer range with material removal of only a few thousandths of a millimeter (e.g., 0.002 to 0.008 millimeters/~0.00008 to 0.00031 Inches), where only the amorphous "soft skin layer" of the surface is removed.
• By combining the oscillating motion of the abrasive and the rotation of the workpiece, a uniform, very fine surface structure is created. This significantly reduces surface roughness (Ra up to 0.004 micrometers/~0.00016 Mils) while simultaneously increasing the surface's load-bearing capacity. As a result, the workpiece's loadability is greatly improved without altering its geometry.
• The abrasives are continuously renewed, ensuring a uniform surface.
• The process is carried out with cooling emulsions like water or oil, making it more environmentally friendly than some other grinding methods.
• Due to the high precision and low thermal stress, the workpiece geometry and internal structures are not negatively affected.

Superfinishing thus improves the surface structure, increases wear resistance by reducing friction resistance, and optimizes lubricant distribution in the microstructures of the surface.

It is particularly suitable for rotationally symmetric parts such as shafts, valves, or bearing bushings and is used as a finishing process after rough pre-machining.

Industries and Examples

Industries and applications of superfinishing are diverse and wide-ranging, especially in sectors with high demands on surface quality, friction reduction, and wear protection.

Automotive industry: Superfinishing is often used for the finishing of crankshafts, camshafts, valve seats, bearing bushings, and transmission parts. The goal is friction reduction and increased load capacity, leading to improved engine performance, longer lifespans, and more efficient vehicles.

For example, superfinishing of crankshafts enables increased load capacity and better lubrication through targeted microstructures on the surface.

Aerospace: Applications include turbine and landing gear components, where precise surfaces with maximum load capacity and long service life are required.

Medical technology: Superfinishing is used for implants such as hip and spinal implants to create smooth surfaces that minimize wear and improve biocompatibility.

Providers

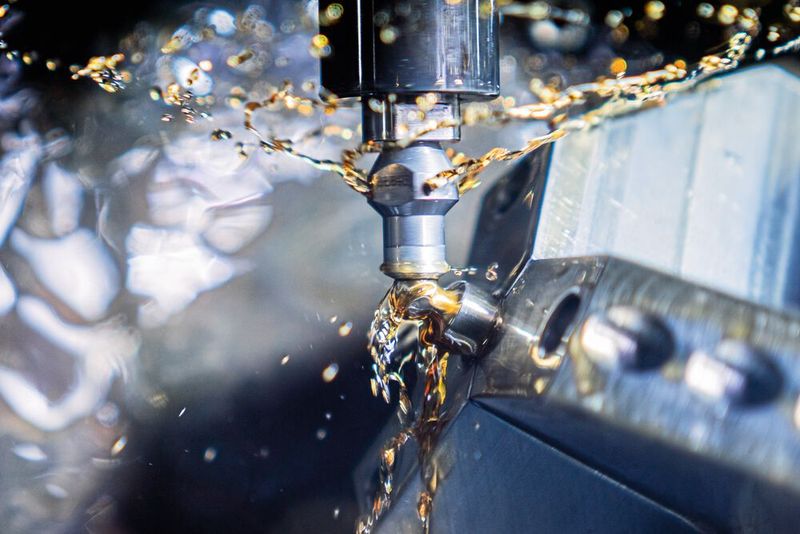

An established provider of superfinishing is Supfina. From raceway machining (superfinishing for rolling bearings, inner and outer rings) to plunge machining (superfinishing for wave-shaped components) and spherical component machining (superfinishing for spherical components), the solutions provider is a reliable partner for achieving perfect surfaces.

Another specialist in superfinishing is Nagel. Nagel technology ensures the best results wherever mobility is required – from vehicle parts to energy systems to fiber optic cables. As a global leader, Nagel offers complete solutions, from small tools to fully automated machining centers, for precise surface fine machining.
