For decades, researchers and engineers have faced a dilemma: they have to choose between visible light and thermal imaging for testing or use separate sensors. Each of these methods has its own advantages. But using both simultaneously? That’s where things have traditionally diverged.

The challenge lies primarily in the precise spatial alignment and temporal synchronization of two data streams and their compatibility. In the past, this meant tedious manual processes that often resulted in inconsistencies, delays, and more questions than answers. The promise of combining the strengths of both imaging technologies remained unattainable—until now.

Combine High-Quality Thermal Images And Visual Daylight Images

The Flir Multispectral Imaging Xperience (MIX) represents a significant advancement in multispectral imaging by seamlessly merging high-quality thermal images and visual daylight images into a single, synchronized dataset. This innovative system eliminates the historical conflict between capturing thermal signatures on one hand and revealing structural details on the other, by combining advanced dual-sensor technology in a single, seamlessly integrated package.

Gallery

The result is an optimized real-time solution that eliminates the need for manual alignment and post-processing, ensuring that every captured image conveys both precise thermal details and visible context. The seamless fusion of high-quality thermal and visual images not only significantly raises the standard for data interpretation but also paves the way for accelerated discoveries in many research and industrial fields.

Integrated Imaging Architecture As the Centerpiece

At the core of Flir MIX is an integrated imaging architecture capable of recording events at up to 1,004 frames per second in full-frame mode. This high-speed performance is critical for capturing transient thermal events—from dynamic material stress tests and rapid chemical reactions to high-speed ballistics and airbag deployment analyses—without compromising spatial and temporal accuracy. The simultaneous capture of thermal and visible image data allows researchers to gain deeper insights into processes that evolve rapidly over time, reducing analysis time and enhancing the precision of quantitative measurements.

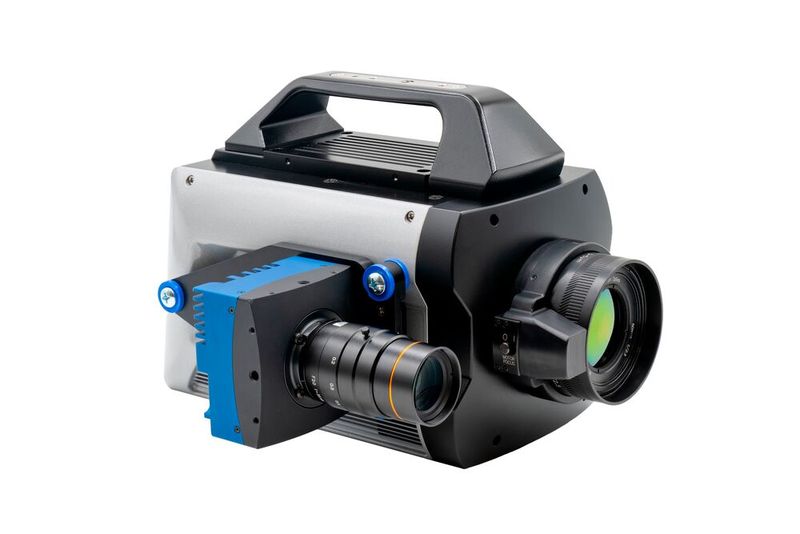

The system was designed from the outset to cover a wide range of advanced applications through differentiated kit configurations. The X-Series starter kit, for example, is tailored for high-speed research environments and combines X69xx thermal imaging cameras with high-speed visible cameras, precision optics, and custom mounting hardware to support demanding applications such as aerospace testing or industrial diagnostics.

The A-Series starter kit, on the other hand, is a versatile solution for fields such as electronics development, renewable energy, and battery testing, where the integration of A67xx thermal imaging cameras ensures the capture of both reliable thermal data and fine visual details. For researchers requiring the functionality of multispectral capture and post-processing, the Mix Toolkit offers an add-on to the existing Research Studio software, seamlessly synchronizing thermal images and daylight captures in real time and merging each image into a comprehensive dataset.

End-to-End Solution Improves User Workflows

In conjunction with the Research Studio software, Flir MIX provides an end-to-end solution that enhances user workflows from capture to analysis. This unified control platform automates the synchronization process and offers intuitive data management and real-time analysis features, drastically reducing the time between data acquisition and actionable insights. With pixel-accurate overlays and temporally synchronized images, the system enables researchers to focus entirely on interpreting results and accelerating discovery, without being limited by the complexity and incompatibility of traditional imaging systems.

Improve the Quality And Reliability of Multispectral Data

By combining high-speed thermal capture and high-resolution daylight imaging, Flir MIX not only provides a complete picture of rapidly moving or changing thermal phenomena but also enhances the quality and reliability of multispectral data. This groundbreaking technology enables scientists, engineers, and innovators to study and comprehend complex thermal environments with unprecedented clarity and speed. The comprehensive, real-time merged datasets facilitate a more nuanced understanding of dynamic processes, contributing to breakthroughs in diverse fields such as defense, materials science, or renewable energy research.

Flir MIX represents a true paradigm shift in infrared and multispectral imaging technology. It accelerates discovery processes by simplifying data integration and enhancing analytical precision. This allows researchers to fully focus on their scientific investigations and innovations instead of dealing with the time-consuming task of data alignment after capture. As a versatile and robust platform, the system opens new doors to understanding complex phenomena and accelerates progress across a broad range of scientific and industrial applications.
