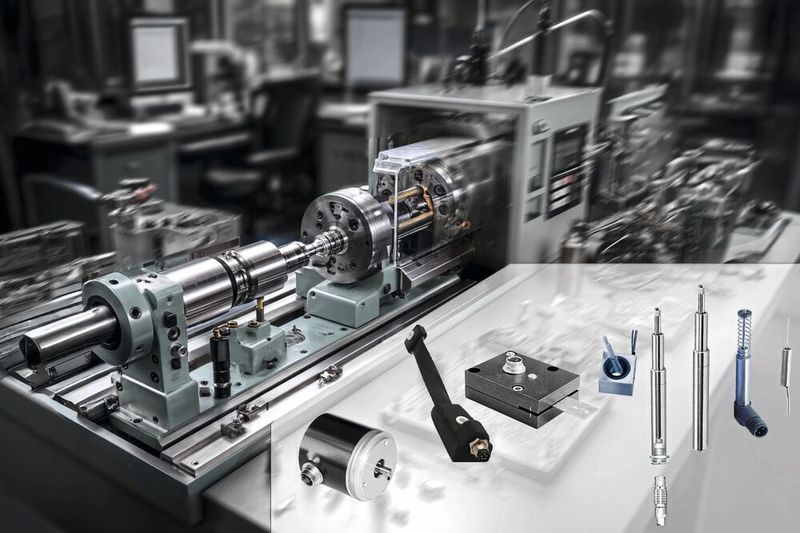

In metalworking, the quality of a workpiece significantly depends on its precise positioning during machining. Sensors help by providing real-time feedback on the position and movement of workpieces and tools.

A misalignment of a workpiece can lead to dimensional deviations, increased tool wear, and production rejects. The alignment of a workpiece is determined as early as during the clamping process. Non-contact measurement methods can be used here to check the exact position in the clamping system. Inductive systems measure distances down to the millimeter range and can reliably detect positional deviations. This is especially crucial for components with tight tolerances to ensure dimensional accuracy throughout the entire machining process.

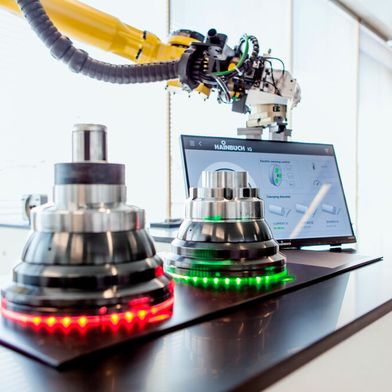

In automated production lines, such as CNC milling machines, such measurement systems can be directly integrated into the chuck or clamping plate. This ensures that the workpiece is in the intended position before the machining process begins.

Gallery

Gallery with 5 images

Depending on the workpiece and machine, there are different requirements for positioning. In the aerospace industry, for example, workpieces must be machined with particularly high precision requirements, as even the slightest deviations can impair the functionality of components. In automotive production, on the other hand, repeatability and process speed are key factors. Here, highly dynamic measurement systems are often used, enabling position corrections within milliseconds.

Height Measurement And Drilling Depth Control

During drilling and milling operations, it is essential to maintain exact depth. Deviations can not only impair the dimensional accuracy of the workpiece but also shorten the lifespan of the tools. Sensors installed directly on the Z-axis of a machine continuously measure the distance to the workpiece and adjust the position if necessary.

These measurement systems are also suitable for monitoring the drill head itself. In CNC machines, modular tool holders are often used where the drill head is interchangeable. Inaccurate clamping can lead to incorrect drilling depths. Non-contact measurement methods are ideal here, allowing verification during clamping to ensure that the tool is correctly seated in the holder.

Continuously Monitor

Another application area is process monitoring in series production. While individual measurements in small series are often performed manually, continuous monitoring is required in mass production. Sensors that continuously measure the workpiece height and tool position enable seamless quality control without interrupting the manufacturing process.

In addition to positioning the workpiece, monitoring the tool also plays a central role. In milling and drilling machines, sensors are used to ensure that the tool head is correctly seated in the spindle. Especially in high-speed machining, incorrect tool clamping can cause significant damage.

Ring-shaped measurement systems detect whether the tool has been fully inserted. This technology is particularly used in production lines where tools are changed automatically. Errors during the tool change process can thus be identified and prevented at an early stage.

A faulty tool holder can not only impair machining accuracy but also lead to tool breakage. Especially in high-speed machining, as required in the aerospace or medical technology industries, vibrations or incorrect tool alignment can have serious consequences. Continuous monitoring is therefore essential to ensure process reliability and quality.

Vibrations And Inclinations in the Machining Process

In addition to static positioning, dynamic influences also play a role. Unwanted vibrations can reduce the surface quality of a workpiece and lead to tool wear. Sensors that measure vibrations make it possible to identify problematic frequencies and compensate for them through adjustments to the machine control system.

Especially in large machining centers or when using robots, the inclination of the workpiece is also significant. Inclination sensors detect changes in the microdegree range and can pass correction values to the machine control. This ensures precision in machining even when external influences like ground vibrations occur.

Another example is the monitoring of vibrations in milling machines. During machining, vibrations can escalate and lead to resonance effects, which can damage both the tool and the workpiece. Real-time monitoring and adaptive control can minimize such effects, thereby improving both the machine's lifespan and the quality of the machined parts.

High-Precision Sensor Solutions

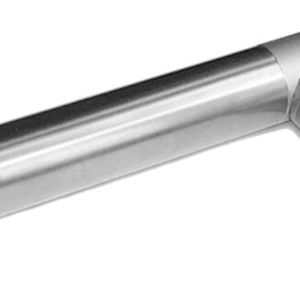

For all these applications, abj Sensorik from Krefeld offers high-quality sensor solutions. These include the precise displacement sensors from Schreiber-Messtechnik, which cover measurement ranges from a few millimeters to several hundred millimeters. These sensors provide high-resolution measurement results even under challenging conditions such as oil mist or temperature fluctuations from 104 to 248 °F.

In addition to position measurement, vibration and inclination sensors also play a key role in manufacturing. Here, Kelag offers robust solutions for monitoring vibrations and inclinations, enabling machine operators to respond to disruptions at an early stage. Complementing these are appropriate data loggers, which can record and analyze motion and position data over the long term.

A particular advantage of abj Sensorik is the ability to offer custom manufacturing in small quantities. This enables tailored solutions for specific applications that go beyond standard products.

Crucial for Quality And Efficiency

The demands for precision in metalworking are steadily increasing. Reliable workpiece positioning is crucial for quality and efficiency. Modern sensor technology makes it possible to detect positioning errors early, monitor tool assembly, and compensate for unwanted vibrations. This minimizes waste and machine downtime—a decisive advantage in the highly competitive manufacturing industry.
