Copper is becoming scarce, aluminum is energy-intensive and PV power plants are getting bigger and bigger. The classic low-voltage architecture is reaching its limits. A new system concept therefore relies on medium voltage.

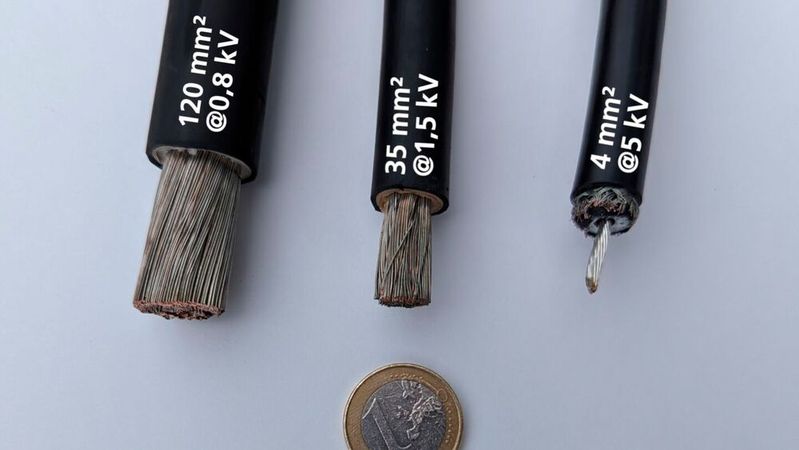

Increasing the voltage reduces the cable cross-sections and therefore the copper requirement considerably.(Image: Fraunhofer ISE) — Increasing the voltage reduces the cable cross-sections and therefore the copper requirement considerably.
(Image: Fraunhofer ISE)

Photovoltaics is no longer thought of in gigawatts, but increasingly in terawatts. Over the coming decades, a massive expansion is expected worldwide that will exceed today's installed capacity many times over. This scaling will change the relevant issues. Whereas in the past the focus was on increasing efficiency at module level, today the focus is shifting to system aspects: material availability, infrastructure costs and the physical limits of traditional system concepts.

A key driver of this development is the increasing demand for electrical cables. Large photovoltaic power plants require enormous quantities of cables to collect and bundle the energy generated by the modules and feed it into the grid. This demand is growing faster than the production capacities for conductive metals. According to the International Energy Agency's Global Critical Minerals Outlook 2024, global demand for copper has exceeded the announced supply since 2025. This situation not only leads to rising prices, but also increases the risk of supply bottlenecks.

Gallery

The medium-voltage PV inverter used, which is based on high-barrier silicon carbide semiconductors, was developed by Fraunhofer ISE as part of the MS-Leikra project.(Image: Fraunhofer ISE)

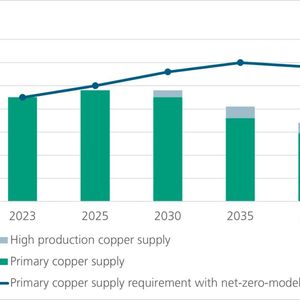

Copper demand has exceeded global copper production since 2025 (source: Global Critical Minerals Outlook 2024).(Image: Fraunhofer ISE)

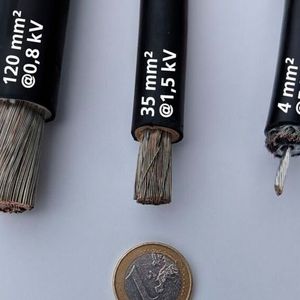

Increasing the voltage significantly reduces the cable cross-sections and thus the demand for copper. (Source: Fraunhofer ISE)

Cables Instead of Modules: Where Material Is Really Consumed

In a modern large-scale photovoltaic power plant with an output of several tens of megawatts, a significant proportion of the material used is not for the modules themselves, but for the electrical infrastructure. The total length of the DC and AC cables laid can reach several hundred kilometers. In addition, there are collection stations, transformers and transformer stations that bring the electricity to grid voltage.

Although the use of aluminum cables has partially reduced the need for copper, it only shifts the problem. Aluminum is energy-intensive to produce, causes high CO₂ emissions and is also considered a critical raw material in Europe. This makes it clear that the solution cannot lie in a change of material alone, but in a fundamental overhaul of the electrical architecture.

The Physical Logic of Higher Voltages

This is precisely where the PVgoesMV approach comes in. The underlying idea is simple but effective: electrical power is the product of voltage and current. If the voltage is increased for the same power, the current decreases. Lower currents enable smaller conductor cross-sections and therefore significantly reduced material usage.

In practice, this means that even a moderate increase in the voltage level has a significant effect. If the voltage is doubled, the required conductor cross-section can be reduced to around a quarter. This not only reduces the need for copper or aluminum, but also simplifies the transport, laying and installation of the cables. At the same time, cable losses are reduced, as they depend on the square of the current. Only the insulation requirements increase.

Effects on the Entire System Architecture

The advantages of higher voltages are not limited to the cabling. The grid-side components also benefit. Transformers can transmit higher power with the same installation space, which means that the number of transformer stations required in large systems can be reduced. Fewer stations mean less concrete, less steel, less space required and a simpler system structure.

For very large PV power plants in particular, this effect has a significant impact on investment costs. The voltage increase not only changes individual components, but also the entire system architecture of a power plant.

Why the Move to Medium Voltage Makes Sense

PVgoesMV is deliberately not pursuing a direct leap to high voltage, but is instead focusing on the lower medium-voltage level. The reason for this lies in the balance between benefits and technical complexity. Even in this voltage range, large parts of the material and cost savings can be realized without disproportionately increasing the complexity of the systems.

The necessary adjustments to insulation concepts, protection technology and components are technically manageable. Many existing technologies can be further developed instead of being completely redesigned. This assessment is also shared by numerous industrial partners who are actively supporting the project.

Pilot Plants as a Technical Reality Check

In order to test the theoretical advantages in practice, two pilot systems are being set up in Germany as part of PVgoesMV. The systems each have a connected load of around 135 kW. A voltage of 3 kV is used on the DC side, while the AC side is operated at 1.2 kV.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

The string inverter used is based on silicon carbide semiconductors with a high reverse voltage and was developed at the Fraunhofer Institute for Solar Energy Systems (ISE). The system will be further adapted for use under real conditions and tested in field operation over several months.

Different string concepts are being tested in parallel. On the one hand, established 1500 V modules with corresponding earthing are used, and on the other hand, specially developed module prototypes for real 3 kV strings. This approach makes it possible to evaluate solutions that can be implemented in the short term as well as future system generations.

From Demonstration to Scaling

A central aim of the project is to derive reliable findings for the planning, construction, operation and safety of medium-voltage PV systems from the pilot operation. These are to be incorporated into testing and quality concepts and form the basis for future standards. At the same time, the participating manufacturers will receive valuable feedback for the further development of their products.

PVgoesMV is therefore more than just a technical experiment. The project addresses one of the central questions of future PV expansion: How can solar energy not only be realized in a renewable way, but also in a material- and cost-efficient way on a terawatt scale? Raising the voltage level to medium-voltage level proves to be a logical and physically obvious step. (mr)
