Push Pull Simplifies Proven Connection Technology

D-Sub Connectors Push Pull Simplifies Proven Connection Technology

2025-10-01 From Kristin Rinortner| Translated by AI 5 min Reading Time

Related Vendors

The push-pull locking technology for the classic D-Sub connector not only reduces assembly times but also enhances user-friendliness during installation in an industrial environment. What idea lies behind this?

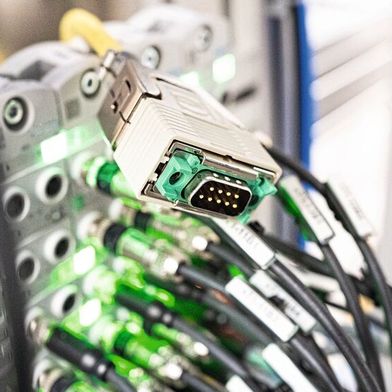

Quick connection technology: In a time where efficiency and user-friendliness are crucial, Harting has equipped the traditional D-Sub connector with push-pull locking.(Image: Harting) — Quick connection technology: In a time where efficiency and user-friendliness are crucial, Harting has equipped the traditional D-Sub connector with push-pull locking.
(Image: Harting)

In modern connection technology, miniaturization, efficiency, and user-friendliness are crucial. Connection technology manufacturers are therefore constantly optimizing their products. For instance, Harting presented an advancement of the classic D-Sub connector at Hannover Messe, Germany 2025.

D-Sub connectors were introduced to the market in 1952 by Cannon (now ITT Cannon). The so-called “Cannon connector” is now one of the established interfaces that quickly made its way into various standards, primarily MIL specifications. The locking mechanism operates via two side-mounted screw connections.

Gallery

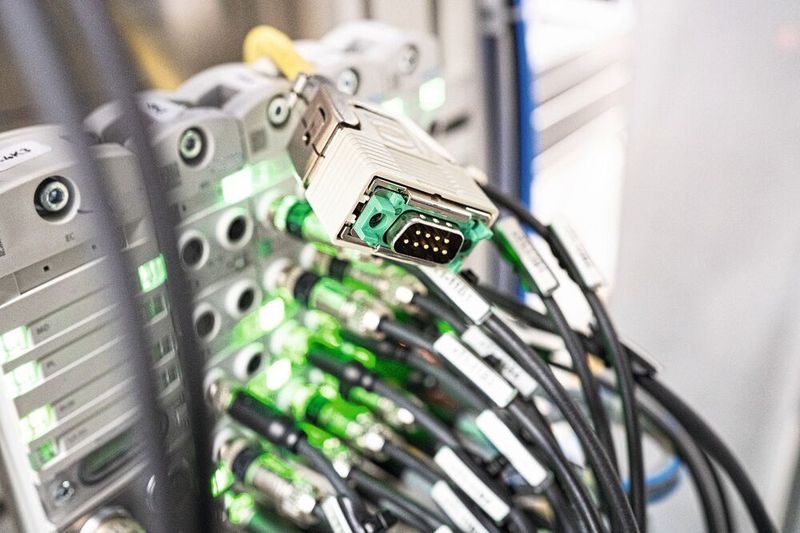

Image 3: D-Sub connectors are often used alongside other interfaces that feature push-pull connection technology.(Image: Harting)

Image 2: The housing enables quick locking, providing greater efficiency and reliability. After the upgrade, installation and maintenance work is faster, downtimes are reduced, and productivity is increased.(Image: Harting)

Image 1: Upgrade pins enable retrofitting to push-pull-compatible interfaces. These pins can be effortlessly integrated and easily screwed into existing threaded holes, instantly providing the push-pull functionality to the classic D-Sub socket.(Image: Harting)

D-Sub is short for D-Subminiature. The external shape of the trapezoidal connector system resembles the letter D and was considered very small for its time, as indicated by the term Subminiature.

Almost every computer used to have a D-Sub connector as a peripheral interface for the monitor or floppy drive. The connector is internationally specified in standard IEC 807-2. Depending on the application, it is also defined in the US military standard MIL-C-24308 or in Germany in DIN standard 41652-1.

Since the D-Sub is established in standardized interfaces but is also frequently chosen for new and custom projects, the specialists from Espelkamp see significant potential. This is particularly true in industrial environments, where the company intends to continue offering a broad portfolio. In Espelkamp, there is confidence that improvements in connection technology will give the interface a new boost.

The Idea Behind the D-Sub Push-Pull Connection Technology

"When asking how the idea for a push-pull locking mechanism for D-Sub interfaces came about, there isn’t just one answer," explains Thomas Seesing, Global Product Manager at Harting. "The consistently positive feedback for push-pull locking mechanisms, which are self-explanatory, user-friendly, and highly process-secure during connection, motivated us to continuously expand our portfolio. Implementing a D-Sub push-pull housing was therefore a logical step in our product strategy."

D-Sub connectors are often used alongside other interfaces that feature push-pull connection technology, such as M12 circular connectors. The logical consequence is to equip devices with a uniform locking mechanism. This simplifies usage for device developers.

In recent years, more and more competing products have entered the market, already offering quick-locking systems for D-Sub connectors. "Our customers wanted a compatible solution from us. We have now successfully addressed this and reimagined the task of developing a user-friendly, fast, and absolutely secure locking mechanism," adds Kurt Robert Hippler, Director of Global Product Management at Harting.

Customers receive a D-Sub connector with a push-pull-compatible housing that is compatible with other systems. This is a very significant factor in today's times, especially from the perspective of a second source.

The Key Technology: Retrofit Locking Bolts

The locking system is based on two springs that latch onto special locking bolts, effectively preventing unintentional unlocking. When the contoured housing is pulled back on the movable part, the springs open, and the housing can be detached from the locking bolts.

These locking bolts are the key to the entire system, as they enable the easy upgrade (retrofit) of existing D-Sub interfaces. In addition to the push-pull mechanism, additional features have been incorporated into the housing. For instance, it is possible to install the company's D-Sub coding frames in housings with the appropriate slot. (The housing includes an additional slot for accommodating a coding frame).

This enables mechanical coding of up to 36 interfaces, preventing incorrect connections. It helps avoid communication issues within the system or the destruction of sensitive components.

Not only the locking mechanism but also the assembly and packaging have been redesigned. The D-Sub push-pull housings do not require cover screws but are simply clicked together after the connector has been assembled and the cable attached.

Two options are available for cable fastening. One is the standard internal cable clamp, which is included in the package, and the other is an external cable clamp, suitable for a wider range of cable diameters, providing more connection space inside the push-pull housing. The packaging was designed to avoid plastic and ensure easy access to the housing components.
