Color display, an active choke, large input voltage range, and the usual slim design: These are the features of the Step-Power-KNX power supply from Phoenix Contact. The active choke not only increases efficiency but also ensures uninterrupted KNX communication up to 1,200 mA. The integrated color display ensures the necessary transparency of KNX status information and assists with commissioning and diagnosis, the advantage: simple KNX analysis.

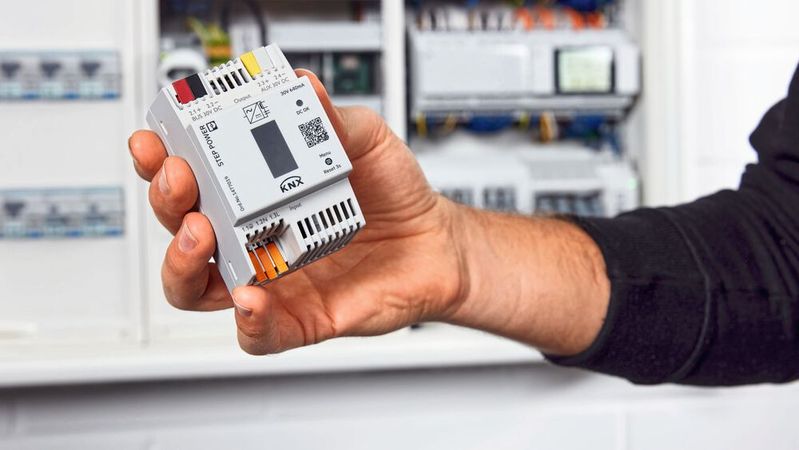

Image 1: Step Power for KNX applications.
(Image: Phoenix Contact)
Daniel Diekmann, Product Marketing, Phoenix Contact Power Supplies, Paderborn.
Nadine Schneider, Marketing Communication, Phoenix Contact Power Supplies, Paderborn.
KNX is a powerful and flexible standard for building automation. It enables seamless integration of various systems and devices to control lighting, heating, air conditioning, blinds, security systems, energy management, and more.
KNX has been an open standard for 34 years and allows products from different manufacturers to work together and communicate seamlessly.
Gallery
A KNX system consists of sensors and actuators. Sensors are field devices that are distributed decentrally in the building and gather information about the environment, such as temperature, light intensity, or movement. Actuators are usually central devices installed in the installation distributor on the mounting rail and react to the collected information from the sensors and perform actions, such as turning on lights or opening blinds.
For this communication to be available 24/7 without interruption or delay, a reliable KNX power supply is needed.
The heart of every KNX system
The power supply: An important and central aspect of building automation. It ensures that all components of the KNX system function properly and communicate with each other. The KNX bus is supplied by one or more power supplies with an integrated KNX choke and typically 30 V (operating range 28 to 31 V) DC voltage.
The choke separates the KNX bus from the active components of the power supply, thus enabling almost interference-free communication between the connected KNX participants.
For communication, the voltage is short-circuited for a minimal time by the addressed participants. Depending on the design and performance of the individual sensors and actuators, the current requirement is higher or lower—on average, around 10 mA is consumed per KNX participant. Typically, a KNX power supply with 640 mA is sufficient to supply a line with 64 bus participants and ensure smooth communication. However, if more powerful KNX devices like displays are installed in a line, this can quickly lead to higher power supply utilization. For this purpose, the KNX standard has defined an appropriate power reserve for each power supply in the guidelines—see KNX Standard 09_02 Basic and System Components Chapter 2.6 Electrical Features.
Full peak load up to 1,200 mA thanks to active KNX choke
The KNX standard specifies up to which operational range the different power variants of KNX power supplies must maintain the voltage and thus the KNX communication. The prescribed minimum voltage of 28 V must not be undershot. Additionally, a 640 mA power supply, for example, must maintain a power reserve up to 900 mA and ensure an overload current of 1,200 mA. Peak values like these can occur permanently with more powerful KNX sensors or temporarily through central functions or larger scenes when many KNX devices need to be addressed and communicate simultaneously. Therefore, attention should always be paid to the dimensioning or correct design of the power supply.
This means that the passive KNX choke commonly used on the market must withstand this load at the bus output without, for example, becoming magnetically saturated. The passive KNX chokes often use a ferrite core, such as an EI core with an air gap, for economic reasons. This can negatively impact the signal integrity of the KNX bus, so the operational range of the power supply up to 900 or 1,200 mA is not guaranteed and can lead to unexpected telegram losses or other transmission malfunctions.
With an active KNX choke, on the other hand, which operates with a toroidal core, the magnetic component and thus the saturation behavior can be avoided. The magnetization of a toroidal core can be executed more precisely depending on the material composition—through a homogeneous distribution of the material mixture, an air gap common in EI cores is distributed into many small individual air gaps. Negative effects of concentrated stray fields can thus be largely eliminated.
Another crucial advantage of the active choke circuit is that the required peak value is precisely adjustable. The required 1,200 mA of the 640 mA power supplies are thus available to the KNX bus without restrictions. For safety reasons, communication or the BUS output is actively switched off from 1,200 mA to ensure differentiation and clear delineation between KNX operation and short-circuit behavior. This makes a KNX system significantly more reliable in terms of system safety and availability and better plannable.
Date: 08.12.2025
Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.
Consent to the use of data for promotional purposes
I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here
Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.
Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.
In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.
Right of revocation
I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.
A KNX power supply ensures transparency

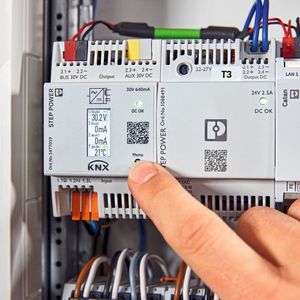

As the first KNX power supply, the Step Power facilitates work for the user via the integrated color display and provides an easy insight into the system directly on the device.

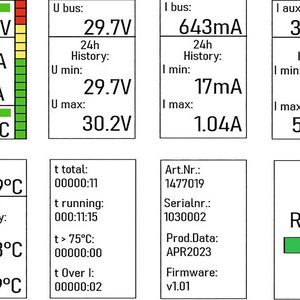

Through this transparency, the KNX bus gets a "face." The display not only reflects the current system state but also provides numerous pieces of information via the menu. These are primarily used for setting up, diagnosing, and expanding the KNX system. This way, the installer has all relevant KNX system information at a glance. This results in several relevant advantages for the user and system operator, such as:
BUS and AUX outputs can be read separately, allowing for narrowed-down troubleshooting.
A short circuit on the KNX line is indicated by a "black screen" or restarting.
The temporal overload behavior is stored in the device and can be accessed via the display. This allows the electrical installer to determine why the device is defective, e.g., due to excessive temperatures in the distribution board.
As soon as a reset of the KNX system has occurred, the runtime—but not the total runtime of the device—is reset to zero, allowing the exact time of the error to be determined.
After ten minutes of non-use, the display automatically turns off to maintain the efficiency of the power supply.

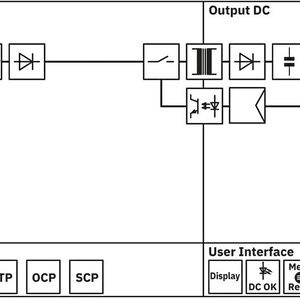

KNX power supply with color display and active KNX choke
Within the mere 3-unit width lies a lot of potential. The Step-Power-KNX power supply from Phoenix Contact offers users more transparency and communication security with the color display and active KNX choke. The device ensures secure communication without interruption thanks to the new choke circuit. The full 1,200 mA are available to the KNX bus. At the same time, the KNX system can be quickly and easily analyzed on-site— making the device also useful for temporary diagnostics in an existing system. All relevant system status information and historical values are always readable through the integrated menu. Thus, it is now possible for not only specialists to make a qualified statement about the system's behavior.
Efficiency and ecological balance also improve further. The active choke circuit dynamically adapts to the connected load, resulting in energy savings. Furthermore, network fluctuations are absorbed at the input, thanks to the wide AC and DC input voltage range, and have no impact on the 30 V KNX supply. Together with the active choke, this ensures a powerful and long-term stable secure KNX communication. (tk)
Overview of the Step Power KNX power supply
KNX analysis, thanks to informative display,
active choke ensures communication security,
1,200 mA peak power ensured,
Efficiency >86%,
Power loss <0.5 W/<3.0 W,
Short-circuit current max. 1.5 A,
Input: 85 … 264 VAC 90 … 275 VDC,
Output: 30 V BUS and AUX output, additional DC OK LED,
W x H x D: 54 mm (3 HP) x 90 mm x 61 mm,
Temperature range: –14 … 158 °F, starts from –13 °F ,
MTBF >1,052,000 h at 104 °F ,
DIN rail and direct mounting,
Overvoltage category (OVC) II up to 16,404 ft and III up to 6,562 ft,
Protection class II,
CB Scheme certification,
KNX certified according to standard v3.0.3,
UL 61010-2-201 (Safety requirements for electrical equipment for measurement, control, and laboratory use),
IEC 61558-2-16 (Safety of transformers, reactors, power supply units, and combinations thereof),
IEC 62368-1 (Audio/video, information and communication technology equipment).
