CIP And SIP How Can the Lifespan of Hoses Be Extended?

The hose lifespan in CIP/SIP processes can often be significantly extended or even doubled by taking a closer look at the cleaning processes and the hoses used.

In hygienic applications, hoses are exposed to thermal, mechanical, and chemical stresses due to cleaning and sterilization processes. This is especially true for CIP and SIP systems (Clean in Place, Sterilize in Place), where interior surfaces are cleaned and sterilized without disassembly. These stresses can lead to unexpected hose failures, costly downtimes, and safety risks, even with products specifically developed for the food and pharmaceutical industries. Common issues include:

• Premature hose failure due to chemical degradation
• Uncertainty regarding the compatibility of cleaning agents
• Time- and cost-intensive replacement processes
• Compliance issues due to unchecked or incomplete cleaning cycles

How does this happen? Product Manager Joël Dupraz from hose manufacturer Angst+Pfister explains: "Many customers routinely use aggressive cleaning agents without being aware of the long-term damage to their hoses. That's why we recommend reviewing both the chemical and mechanical impacts as well as the hose material."

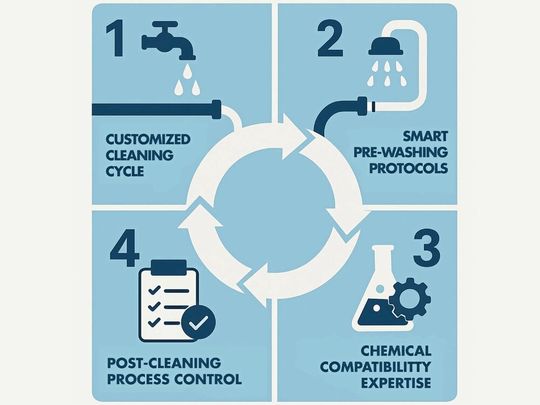

Protecting Hoses During CIP/SIP Processes

Food-grade hoses specifically designed for CIP/SIP are just one factor for a reliable, long-lasting system. Even more important is that the cleaning processes protect the systems and production:

1. Tailored cleaning cycles: The frequency of CIP/SIP cleaning should correspond to the contamination risk of the respective product. The cleaning cycles are calibrated based on the medium, temperature, and concentration to reduce unnecessary wear.
2. Smart prewash protocols: Before the first use, hoses should be flushed with drinking water at a temperature of 176 °F for eight hours. The manufacturer's instructions for the initial operation to avoid damage during the first cycle should definitely be followed.
3. Expertise in chemical compatibility: Not all hoses tolerate aggressive media equally. Some hose manufacturers offer compatibility charts and advice for their products concerning a variety of chemicals, such as caustic soda, nitric acid, peracetic acid, phosphoric acid, and steam sterilization options.
4. Process control after cleaning: Validated procedures are recommended to ensure that all residues are removed—this minimizes contamination and protects both the product and the company's reputation.

Practical Example: What Effect Do these Measures Have?

Angst+Pfister advises users on hose selection, cleaning protocols, chemical compatibility, and maintenance. For example, a medium-sized dairy processing company using peracetic acid at a temperature of 185 °F experienced weekly hose failures during CIP cycles. After consulting with the hose manufacturer, the company implemented the following measures:

• The hose material has been upgraded for higher chemical resistance.
• The cleaning concentration and duration were adjusted.
• Validated flushing protocols were implemented.

This doubled the lifespan of the hoses, improved compliance, and reduced hose-related downtimes by 60 percent. The internal sales advisor of the hose manufacturer explains: "The technical information we received helped us not only optimize the selection of hoses but also the entire cleaning process. That was a crucial factor for efficiency and trust."

Frequently Asked Questions About CIP/SIP Maintenance in Food And Beverage Production

1. How often should food-grade hoses in CIP/SIP applications be replaced? The replacement frequency depends on the cleaning agents, temperatures, and cycle intensity. With optimized materials and cleaning protocols, the lifespan of hoses can be extended from an average of 6 months to 12 to 18 months.

2. What are the most common causes of hose failures during CIP/SIP? Thermal and chemical degradation due to aggressive cleaning agents, incorrect cleaning cycles, or skipping pre-flushing steps are among the most common causes of premature hose failure.

3. Which cleaning agents can be used safely with food-grade hoses? This depends on the hose material. Ask the hose manufacturer for chemical compatibility charts to select the right product.

4. What is the advantage of pre-cleaning the hose before first use? Pre-cleaning with drinking water at 176 °F for 8 hours helps remove production residues and stabilize the inner tube material. Skipping this step can reduce the hose's lifespan by up to 30 percent.
