Researchers at the Fraunhofer IWS have developed a laser-based technology called "direct laser cladding" that produces metallic coatings faster, more energy-efficiently and more cost-effectively than previous processes. Users can significantly reduce cycle times, energy requirements and process costs.

Direct laser cladding combines minimal heat input with a defined forming force. Oxide layers crack at the joint, fresh metal surfaces react immediately and a permanent metallic bond is created. In contrast to laser deposition welding, the coating does not melt over a large area, but remains largely in the solid phase. This mechanism reduces the amount of energy required, increases the deposition rate and stabilizes the coating quality along the entire length of the component. "We try to minimize or even avoid the molten phase," emphasizes Marko Seifert, Head of the Heat Treatment and Thermal Coating Department at the Fraunhofer IWS. "We activate the contact zone with very little energy and thus achieve dense, uniform coatings with significantly less process time."

How Direct Plating Works

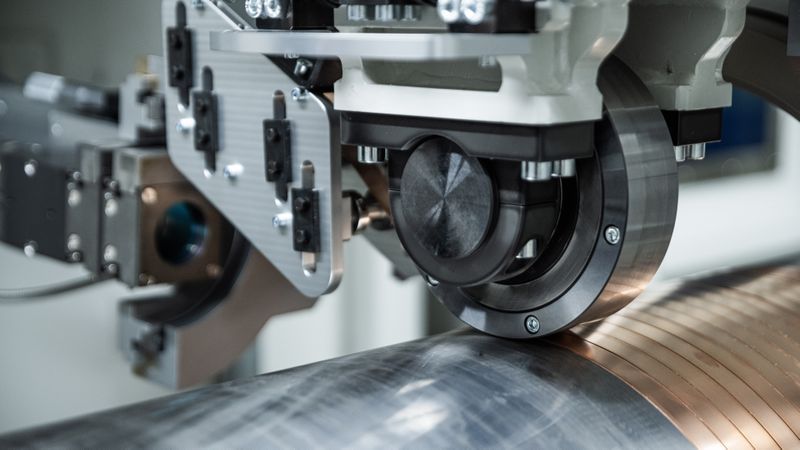

Direct cladding is geared towards rotationally symmetrical components. The strip runs at a constant speed, spirals around the base body and bonds to the substrate during winding. Laser radiation only heats the contact surface to joining temperature for a short time. The combined effect of heat and pressure creates a material bond. This distinguishes the process from laser cladding with continuous melting of the coating material. Direct laser cladding creates the functional layer directly on the component.

We activate the contact zone with very little energy and thus achieve dense, uniform coatings with significantly less process time.

Marko Seifert

Belt speeds in the mile-per-minute regime allow high application rates up to the three-digit kilogram-per-hour corridor. The low thermal influence limits the heat-affected zone to the immediate joining line and preserves the structure of the base body. The surface has a homogeneous, roll-like structure; the post-processing steps of turning, grinding and polishing are significantly shorter. In an industrial reference, the coating time of a hydraulic cylinder was reduced from around twenty hours to around six hours. Depending on the setup, the energy requirement is reduced by up to ninety percent.

Tightness, Multilayer Structure And Choice of Material

Application in spirals creates defined butt joints that are sealed by a continuous joining process. A multi-layer structure is recommended for corrosion-critical applications, because from the second layer onwards, only layers of the same type are joined together, thus minimizing mixing. Typical layer thicknesses are around 0.04–0.12 inches. Multi-layer packages can reach a total thickness of several centimetres. Furthermore, the selective volume structure enables customized profiling along the length of the component. Different materials in the layers create multifunctional layers. Direct laser cladding improves the application of coatings for wear and corrosion protection on hydraulic cylinders, process and forming rollers and plain bearings. For the regeneration of worn rollers, the process builds up the missing volume in a targeted manner. This saves material and shortens downtimes. "We want to consolidate energy and cost efficiency in a robust process window," emphasizes Seifert. "This facilitates the transfer to existing lines and delivers reproducible quality, even with large components."

Pilot System for Components Up to 6.6 Feet Long

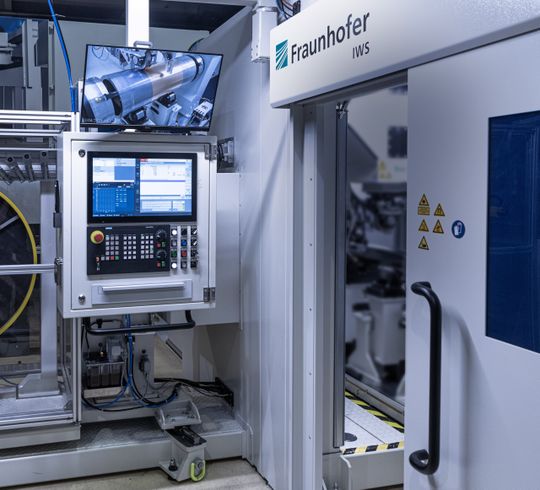

The Fraunhofer IWS has applied for a patent for laser direct cladding and has set up a pilot system for components up to two meters in length. The team qualifies use cases, defines process windows and proves the economic viability using demonstrators. Scaling is carried out in collaboration with the system manufacturer and industrial partners, and options for licensing and transfer models are available. The goal is a reliable design for series processes with clearly defined cycle and quality parameters.
