The foundation of the modern automotive industry is innovation, cost pressure, and sustainability. ZF stands out here with its innovative developments in electromobility. In an exclusive interview with Dr. Otmar Scharrer, head of development for electric drive systems at ZF, we delve deep into the world of electric drives.

Concept vehicle EVbeat: ZF has trimmed its ultra-compact electric drive package EVSys800 with thermal management and software in the EVbeat concept vehicle for maximum efficiency.(Image: ZF) — Concept vehicle EVbeat: ZF has trimmed its ultra-compact electric drive package EVSys800 with thermal management and software in the EVbeat concept vehicle for maximum efficiency.
(Image: ZF)

Image 2: Dr. Otmar Scharrer is responsible for the development of electric drives at ZF.
(Image:ZF)

ZF's focus on individual customer needs is a unique selling point with such a vast range of vehicle classes. Therefore, ZF's technology platform is a remarkable approach to allow customers individuality. The platform is the result of years of research and development aimed at creating a modular and flexible solution for electric drives. This platform enables ZF to offer customized solutions for a broad range of applications. By combining various technology modules, specific requirements for performance, efficiency, and cost can be met effectively.

Sustainability and efficiency in focus with the I²SM.

In 2023, ZF introduced the inductively excited synchronous electric motor (FSM) with the I²SM. "The magnet-free motor made big waves," says Dr. Scharrer. "We actually have a long tradition with asynchronous machines. Our first electric drive that we put into series production was an asynchronous machine and this technology still has its raison d'être." Asynchronous machines are ideal for all-wheel drive vehicles where you drive many miles using only two driven wheels to save energy.

Gallery

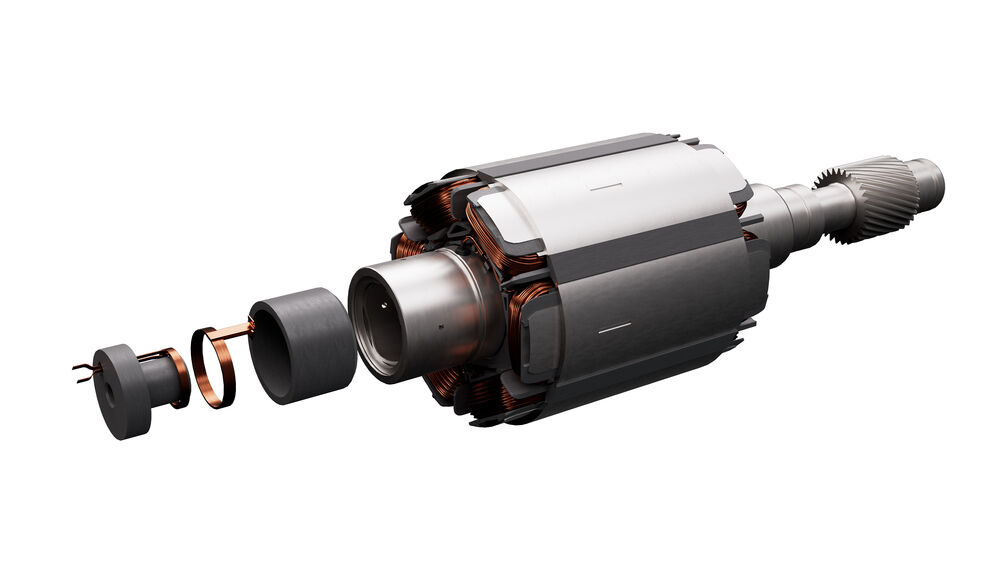

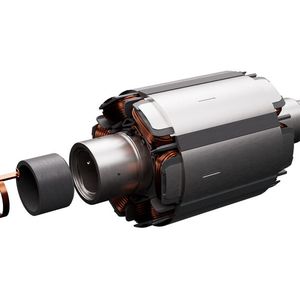

The world's most compact and torque-dense electric motor without magnets and rare earths: ZF is developing a sustainable and high-performance alternative to popular electric drives with the I2SM concept.(Image: ZF)

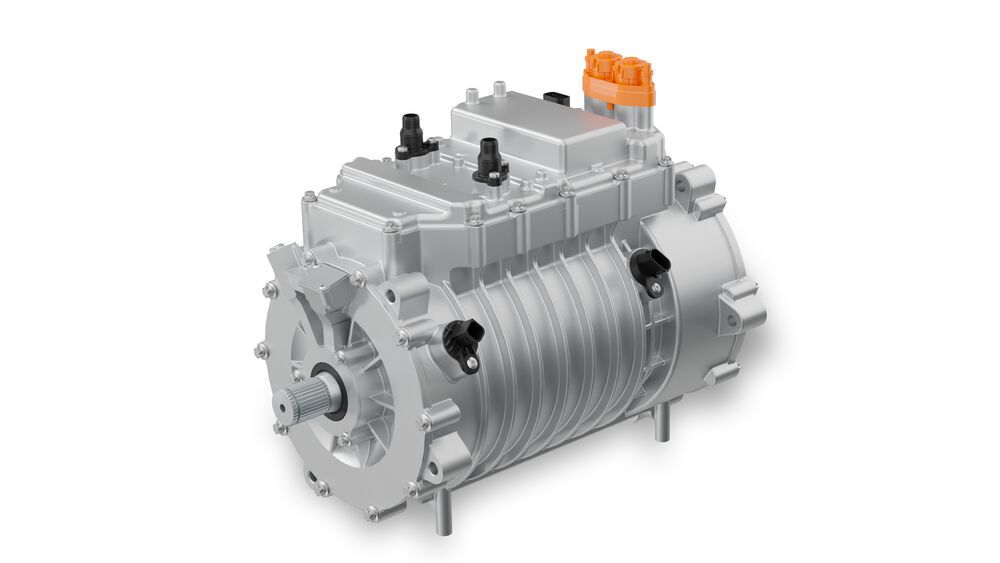

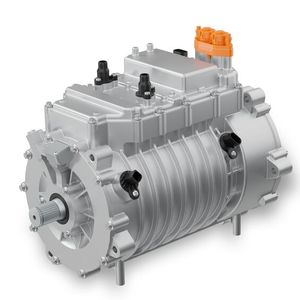

The new generation of ZF's EVSys800 electric drive impresses with a power density of 70 Newton meters per kilogram of drive weight.(Image: ZF)

As long as there is no current flowing in the stator winding, the asynchronous motor does not generate any magnetic flux in the rotor. Therefore, there is no resistance, as would be the case with a synchronous motor with permanent magnets, explains Scharrer. This advantage is also offered by externally excited synchronous motors (FSM).

These advantages of the asynchronous machine are implemented by ZF within the framework of the technology platform with the I²SM. "The biggest advantage in terms of sustainability - you don't need magnets. After all, that's one to two kilos of magnetic material that is installed there [...] In addition, they are found in the People's Republic of China 95 percent of the time and some people are therefore thinking about whether it makes sense to make themselves so dependent on a single country." In terms of costs, however, this has not really had an effect on the drive or power electronics yet, because the external excitation requires an additional motor phase and increased software effort. However, independence from raw materials is not to be sneezed at in times of crumbling supply chains.

The key technology behind the compact design is inductive transmission. Here, the voltage for the rotor winding is induced, making comparable measures such as slip rings superfluous. In addition, the positioning integrated by ZF allows for a significantly shorter design. A full 90 mm is saved here.

Variety through modular design: asynchronous, synchronous, and externally excited.

Within the technology platform, ZF offers various types of engines. The selection of the appropriate technology is based on a thorough analysis of the customer's specific requirements. For example, asynchronous motors offer a robust and cost-effective solution, while externally excited synchronous machines enable high efficiency and performance while being independent of rare earths. By using specialized simulation tools and comprehensive expertise, ZF is able to recommend the optimal configuration for each application. Their own simulation tools make it possible to analyze driving cycles and select the best machine accordingly.

For the EVbeat, ZF built a technology carrier based on the Porsche Taycan. This vehicle was not just simply assembled. Through several thousand simulations, the ideal combination of front and rear axle was found to get the last bit of performance or efficiency. With success. The EVbeat achieves up to a third more range in real winter operation. Here, a Permanent Magnet Synchronous Motor (PSM) without heavy rare earths was installed with the EVSys800. This is also part of the technology platform.

In addition to increasing independence in the area of magnetic materials, ZF is also partnering with Wolfspeed in the area of power semiconductors. Through the close partnership, the supplier secures exclusive market access. In the EVSys800, power semiconductors in the inverter are used with silicon carbide technology.

"If I were a startup, I would buy the electric drive from ZF and not develop it myself." Scharrer's statement is based on the fact that it is difficult to diversify with electric drives, especially at the beginning. According to Scharrer, it makes little sense for startups, which still have low sales, to develop their own drives due to the high investment costs and the high amount of time required.

Cooling as a Central Element

A central element of the technology platform is the cooling. "We have decided to cool where the heat is generated, namely in the copper wires of the winding." The heat is removed directly from the system through oil, which flows around the windings of the electric machine. The demand-based cooling also allows for a significantly more compact design. Through in-house developments such as TherMaS, a thermal management system, independent cooling of the electric motor and power electronics is also facilitated.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Shaping the future

Flexibility and adaptability are key factors for success in the fast-paced mobility industry. This technology platform represents a central building block of ZF's strategy to be able to respond to the rapidly changing requirements of the market. Not only are customer-specific solutions efficiently developed with this system - it also lays the foundation for new trends such as autonomous driving, electrification, and digitalization. It is a living system, continually being developed to redefine the boundaries of what is possible. (mr)
