Tailored for metal processing

Dispensing systems Tailored for metal processing

2024-12-17 Source: Press release | Translated by AI 1 min Reading Time

Related Vendors

LBI oil free has introduced two tailor-made dispensing systems for metal processing. These models have been developed to apply oil-free lubricants even more efficiently and precisely.

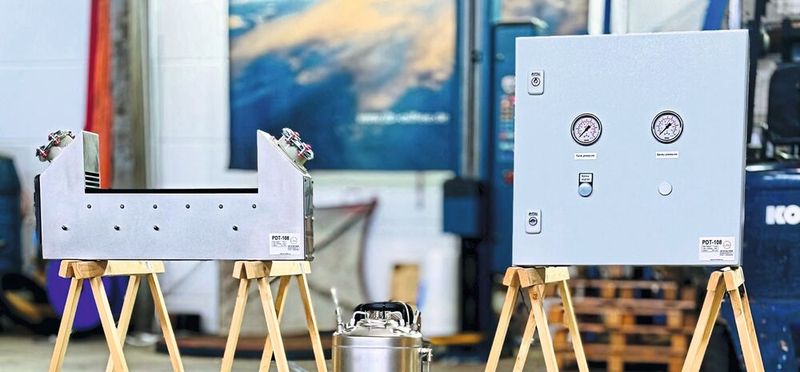

The smaller dispensing system allows coils to be coated exclusively with a lubricant from the underside.(Image: LBI oil free) — The smaller dispensing system allows coils to be coated exclusively with a lubricant from the underside.
(Image: LBI oil free)

The smaller model was specifically developed to coat coils only from the underside, leaving the top completely free of lubricant. With the integrated "horns" and slots, overspray is extracted, preventing any lubricant from settling on the top side of the sheet. The control of pressures is managed via proportional pressure regulators integrated into the customer's machine control system. A 20-liter stainless steel pressure tank with a two-point float switch and optical level indicator completes the system.

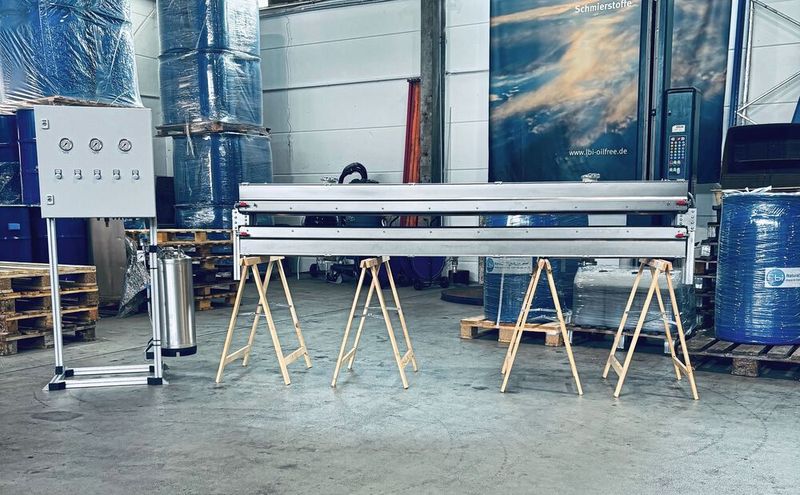

This larger dispensing system provides full-surface coating of coils both from above and below and is designed for coils up to a width of 2,100 mm.(Image: LBI oil free) — This larger dispensing system provides full-surface coating of coils both from above and below and is designed for coils up to a width of 2,100 mm.
(Image: LBI oil free)

The second dosing system provides full-surface coating of coils from both the top and bottom and is designed for coils up to a width of 2,100 mm. A pass-through opening for coils up to 2,400 mm wide ensures maximum flexibility. The control is divided into five groups and the spray pressures are managed by separate proportional pressure regulators integrated into the customer's machine control system. A pneumatically actuated material pressure regulator allows for quick adjustments in the application amount depending on the coil feed speed. At the customer's request, all control components are equipped with Festo components. Maintenance flaps on the front and a 20-liter stainless steel pressure tank with a two-point float switch and optical level indicator complement the system.
