Revamping Assembly Line Dynamics: Seamless RFID-PLC Connectivity

Case Study Revamping Assembly Line Dynamics: Seamless RFID-PLC Connectivity

2025-04-01 From Elatec GmbH 4 min Reading Time

Related Vendors

A major truck manufacturer improved its assembly line operations by integrating RFID badge readers directly with PLCs, removing the complexities of previous systems. This advancement enhanced data accuracy and reduced downtime. By implementing advanced multi-technology readers and converters, the company achieved secure, seamless connectivity, marking a significant advancement in industrial automation.

The company (who requested anonymity) required a solution of reliable RFID badge readers that could securely and directly connect to numerous assembly line PLCs with no other software interfaces required. This company is among the world's largest medium- and heavy-duty truck manufacturers with well-known brands. One of the ways the company manages quality on its assembly lines is through employee RFID badges that capture who was at a given station when an engine was built. The employee scans in at the start of the operation and again when the operation is completed. In the event of quality, cycle time or another issue, that issue can be associated with a specific employee, station, date and time. The supervisor is then able to inform the employee for corrective measures.

PLC Upgrade Initiative: Direct Badge Reader Integration to Minimize Downtime

The company was going through a project to upgrade all the Programmable Logic Controllers (PLCs) in the plant. The old system used a serial RFID badge reader and could not connect directly to the PLCs. Because of this disconnect, the employee badge information had first to be sent to a PC. The PC would then report that badge information to the Manufacturing Execution System (MES), and the MES would send the badge information back down to the PLCs. The complexity of the old system created multiple points of failure. While the badge readers themselves would occasionally fail, the more significant issue was the software. These numerous software interfaces would sometimes have hiccups due to Windows issues, which would require PC reboots, resulting in downtime on the line. So, a primary objective of the new PLC upgrade project was to find a way to directly connect the badge readers to the PLC with no other software interfaces.

Cost-Effective Upgrade: Integrating ELATEC Readers for Seamless Connectivity

The supplier of the old badges proposed licensing software that would program the readers and work with the system, but it was too costly, and the process was slow-moving. However, they also proposed ELATEC badge readers. In contacting ELATEC directly, the company discovered the TWN4 MultiTech 2-PI reader and the TCP3 Converter, which would take the TWN4 badge reader information and convert it to a TCP/IP message and connect to the PLC with no other interfaces. The combined TWN4 reader and the TCP3 Converter would also enable the company to program their badges--write the employee numbers to a new memory location on the badge. And it would ensure a secured message between the TCP3 and the PLC, a corporate IT requirement.

Streamlined Assembly: Enhanced Process Tracking with Advanced PLC System

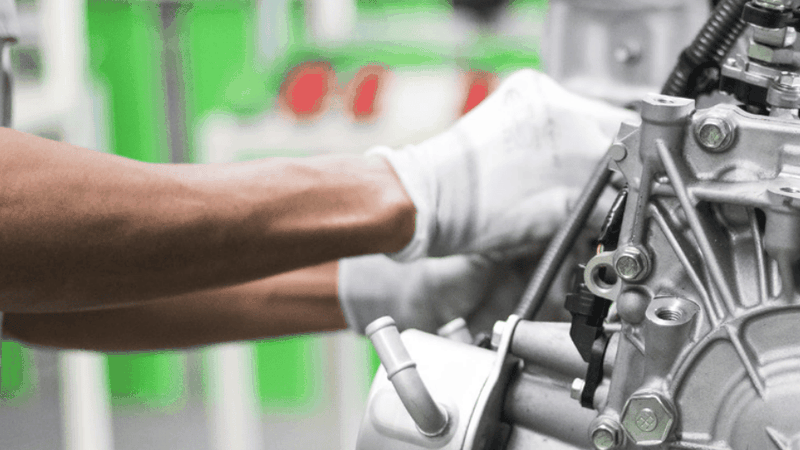

The company implemented a new PLC system, including the TWN4 badge reader and TCP3 Converter solution on over 90 different stations connected to Siemens PLCs on two of the company's truck assembly lines. Some of the stations are automated robotic assembly stations, and others are manual, such as where an operator hand-starts bolts or plugs in connectors.

"ELATEC readers are much faster at reading the badge because of the TCP3s," said the Controls Engineer with the company. "They are on our network, so right from my desk, I can go online with any of the readers and change the firmware. So if someone needs their badge reprogrammed, I can quickly connect to that reader, put a different firmware on it, program the badge and put the original firmware back on it, and it's back online. It's very convenient and user-friendly and just a really straightforward software application."

"And we're able to get a lot better data recording," continued the Controls Engineer. "With our new system and these badge readers as part of it, every process completed on an engine, whether it's a bolt run down, a scan of a part number or a picture that's taken, those processes get associated with an operator badge. So, when we report that data to our MES system, we have the employee ID to associate a person with a process. Before, 20 or 30 engines may have had the same quality issue, but we had no idea who ran that station and needed additional training. We don't have those issues now."
