An automotive supplier produces battery burst discs that reduce pressure in batteries in case of thermal overheating. The production is demanding and high-paced - ideal for automation solutions.

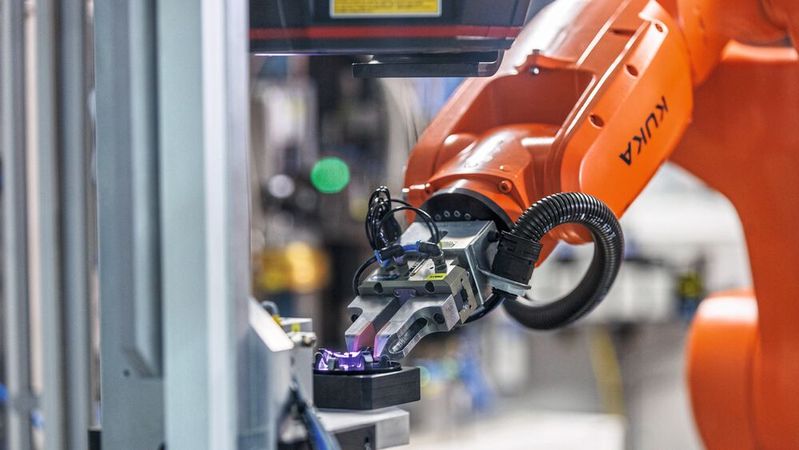

The enormous increase in capacity in the production of vent valves at Benzing could only be achieved through an automation solution.(Image: Kuka) — The enormous increase in capacity in the production of vent valves at Benzing could only be achieved through an automation solution.
(Image: Kuka)

The trend towards electric vehicles would be sustainable, the people responsible at the medium-sized company Hugo Benzing GmbH & Co. KG in Korntal-Münchingen quickly recognized. The leading safety component manufacturer also knew that its know-how would be useful for building electric cars. So the safety experts started developing burst membranes and burst disks for e-mobility. The patented safety valves release pressure into the surrounding air when there is thermal overheating in the battery. By preventing a pressure increase in the battery, they ensure the safety of the electric car.

High safety requirements

To manufacture this vent valve, high safety requirements and continuous quality controls are necessary in the production process. The valve consists of three parts, which are assembled at Benzing in an automated production cell. "We initially built the parts by hand," reflects Managing Director Christian Benzing. But soon it was clear that demand for these vent valves from the automotive industry would skyrocket. "So we needed high quantities," says Benzing. The enormous increase in capacity could only be achieved through automation. In addition, the safety inspections of the individual parts could now be standardized according to defined, programmed processes and with the help of state-of-the-art technology. This is where the expertise of the mechanical engineer and automator, Wafios Tube Automation GmbH from Simonswald in the Black Forest, came into play.

Gallery

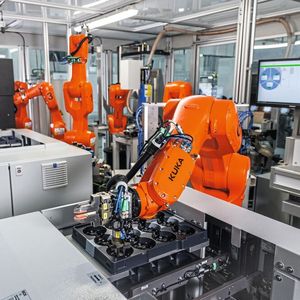

A challenge were the grippers on the robots: sensitive individual parts like the springs, can bend even if you just hold them too firmly in your hand.(Image: Kuka)

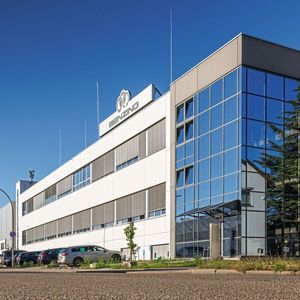

The decision-makers at the medium-sized company Hugo Benzing GmbH & Co. KG in Korntal-Münchingen quickly recognized that the trend towards electrically powered vehicles would be sustainable.(Image: Kuka)

The cells are mobile. Since each cell stands on three steel plates, its location can be easily changed.(Image: Kuka)

The patented safety valves release pressure to the ambient air in the event of thermal overheating in the battery.(Image: Kuka)

Gallery with 8 images

"The order for the first automation cell was placed in October 2019. The following year, it went into operation in Korntal," recalls Boris Kuehn, managing director of Wafios Tube Automation, about the beginnings. Since 2023, two largely identical cells have been in operation, producing a total of two million valves per year. In each unit, six Kuka robots work together. The KR Agilus assemble the vent valve from three individual parts - a carrier part, a spring and a closure part. The robots also swivel 360 degrees. The fact that they do not collide during the work processes is precisely calculated and programmed according to defined sequences. The key to this are transfer stations where the individual robots place and pick up the parts. Thus, the successive performance of pick-and-place activities ensures trouble-free operation in the cell.

The reason the automator chose Kuka robots for the Benzing contract has two reasons: on the one hand, Wafios Tube Automation has been a system partner of the Augsburg robot specialist since 2013, and on the other hand, Benzing had already relied on Kuka for other automation processes and had very good experiences. Many different processes run at a high cycle speed in the seven by five meter cell. This required a precise, fast and compact robot.

Mobile work platform

The choice fell on the very accurate KR Agilus, designed for top working speeds, in six-fold execution per cell. Besides the flexible robot, the entire system is also mobile in operation: It is not bound to a fixed location in the factory, but is located on three steel plates and can be completely moved within the shortest possible time. "For us, this was an important argument, because processes in production do indeed have to be adapted again and again. This mobile solution does not cause us any production downtime," Christian Benzing is pleased to say.

At Benzing, the safety valves are produced in a three-shift system. An employee first initiates the automated production process by introducing the carrier parts into the system via a palletizing system. There, the KR Agilus picks up a carrier part and hands it over to a light check, which is done by an image-processing camera. These cameras are an important part of the testing process. After the carrier part, the spring is fed in and is also measured before use. Finally, the closing part is added and is also checked. If a part is defective, the KR Agilus sorts it out - into a box specially provided for this purpose.

The machine operator can intervene at any time

Once all components have been inspected, the robots transfer them to the assembly station. "There they are welded by means of ultrasound, that is, by a high frequency," explains Dietmar Dengler, also Managing Director at Wafios Tube Automation. The vapors that form during this process are extracted to protect the employees. A robot now hands the welded parts over to the deburring station, which removes the remnants from welding. A further testing station is integrated here. If the finished part meets the requirements, it goes to a leak test, which is carried out in a helium booth. "If everything is okay, the part is then laser engraved and ready", says Dengler. The operator can also request individual parts for inspection during the process if he feels it is necessary. After all automated production steps have been completed, he removes the finished batch of safety valves.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

One challenge was the grippers with which the robots pick up and put down the sensitive individual parts. "The springs have six arms that can bend just by holding them too tightly," explains Dengler. But at Wafios Tube Automation, they are familiar with these requirements for gripping tools and have therefore developed them themselves for the assembly cell. The overriding control, with which the system including the six KR Agilus is operated via a panel, was also developed in-house and has been in use with customers for years. "The operator only programs the control, but does not need to have any robot knowledge," emphasizes Kühn.

Accepted by the workforce

The staff at Hugo Benzing GmbH & Co. KG respond well to automation. Thanks to the "robot colleagues", the employees have more resources for other activities in production. Particularly since manual production of the safety valves would not make sense due to the complexity of assembly, the many testing processes, and the significantly increased output. "In order to be the best supplier in this area, we need one hundred percent process control. We can only achieve this through automation," says Managing Director Benzing, pleased.
