Optimized tooth engagement through targeted deformed gearwheels

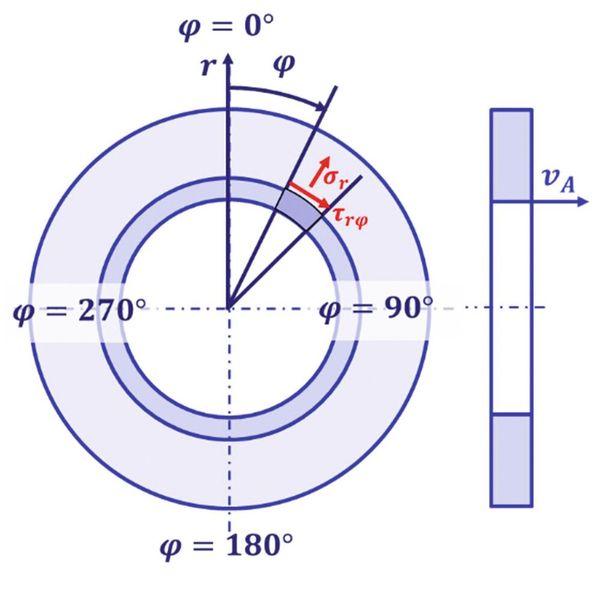

The greatest stresses were expected on the inner ring and therefore determined and compared at the four circumferential points at Phi equal to 0°, 90°, 180°, and 270°. The stresses are determined very conservatively through the analytical calculation and thus have safety in the design. The displacement in the longitudinal direction v(A) is given in a displacement in µm, the difference is about 1 µm. This deviation is less than the later occurring manufacturing tolerances on the component. (Image:Adrian Technologies/TH Nürnberg) arrow back arrow forward Image Zoom
The greatest stresses were expected on the inner ring and therefore determined and compared at the four circumferential points at Phi equal to 0°, 90°, 180°, and 270°. The stresses are determined very conservatively through the analytical calculation and thus have safety in the design. The displacement in the longitudinal direction v(A) is given in a displacement in µm, the difference is about 1 µm. This deviation is less than the later occurring manufacturing tolerances on the component. (Image: Adrian Technologies/TH Nürnberg)
