Switching high voltages in electric vehicles according to safety requirements requires powerful switching elements. High-voltage contactors fulfill this task – and integrated driver solutions ensure correct and efficient control.

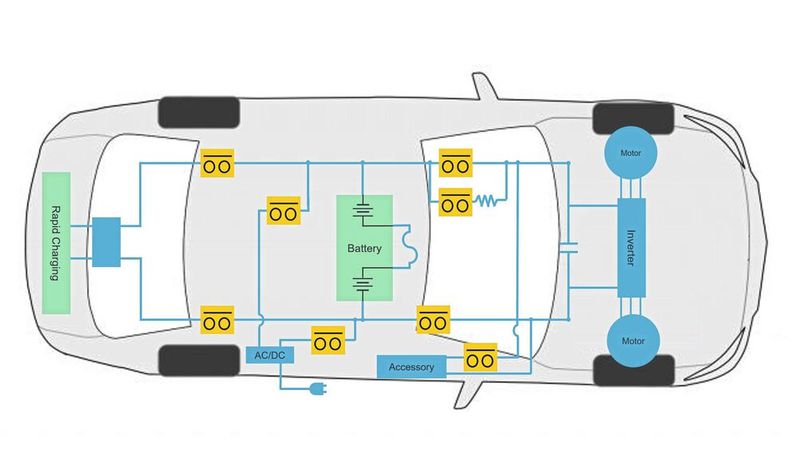

Image 1: Use of contactors (yellow symbol) in electric vehicles.
(Image: STMicroelectronics)
Nicolò Cascone is a Technical Marketing Engineer at STMicroelectronics in Catania.
At the historical Paris Agreement of 2015, the ambitious goal was set to achieve CO2 neutrality by 2050 to limit the long-term rise in global average temperature to 1.5 °C. To achieve this, it is necessary to focus the energy sector on renewables rather than fossil fuels, and part of this transition will also affect the automotive sector, where the aim is to reduce the production of vehicles with internal combustion engines.

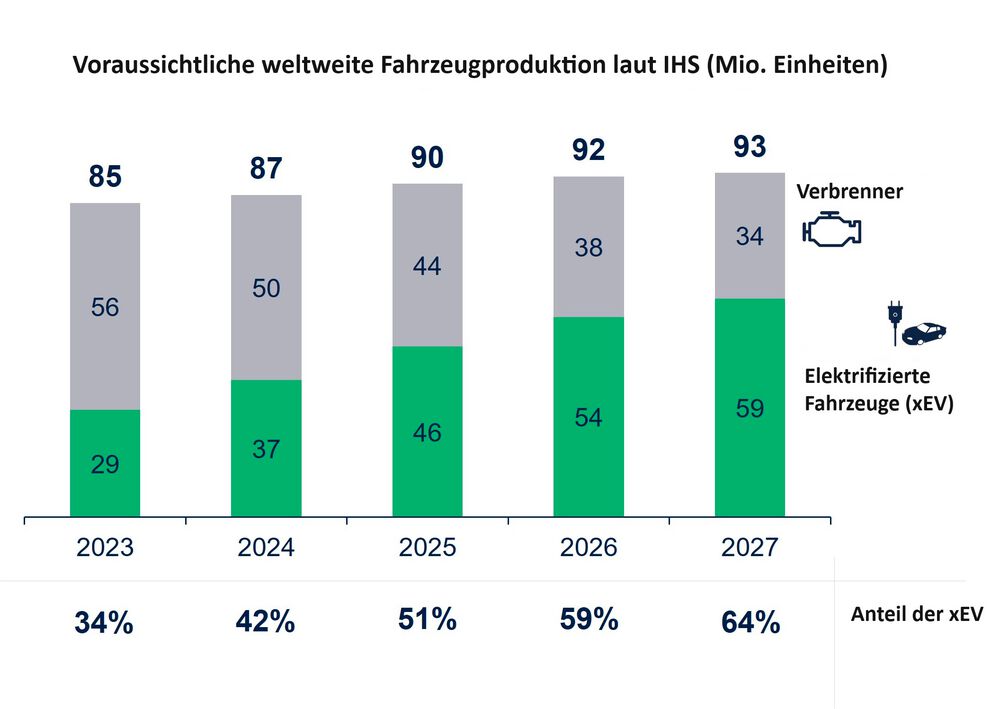

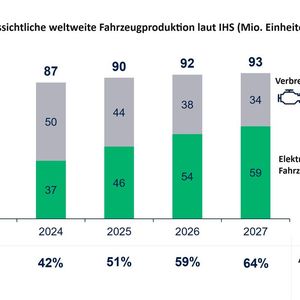

Image 2: Forecast of global vehicle production.
(Image:STMicroelectronics)
According to a study by IHS Markit, electric vehicles (xEVs) will play a dominant role from 2026 and make up the majority of produced vehicles (Figure 2). Here, "electric vehicles" include purely battery-electric powered vehicles (BEVs), hybrid electric vehicles (HEV), and plug-in hybrid vehicles (PHEVs). Since energy in xEVs is primarily stored in batteries, efficiency, safety, and reliability are essential parameters.
The VIPower technology developed by STMicroelectronics specifically for the automotive sector, with its broad portfolio, provides very good preconditions. The manufacturer has enhanced this technology with improved performance data, new features, and increasing miniaturization, thus positioning it as a pioneer for the advancing electrification and digitalization of motor vehicles. As intelligent power switches, the VIPower devices can be used as high- and low-side drivers for electrical loads and electric motors, where their very low losses and high current measurement accuracy come into play.

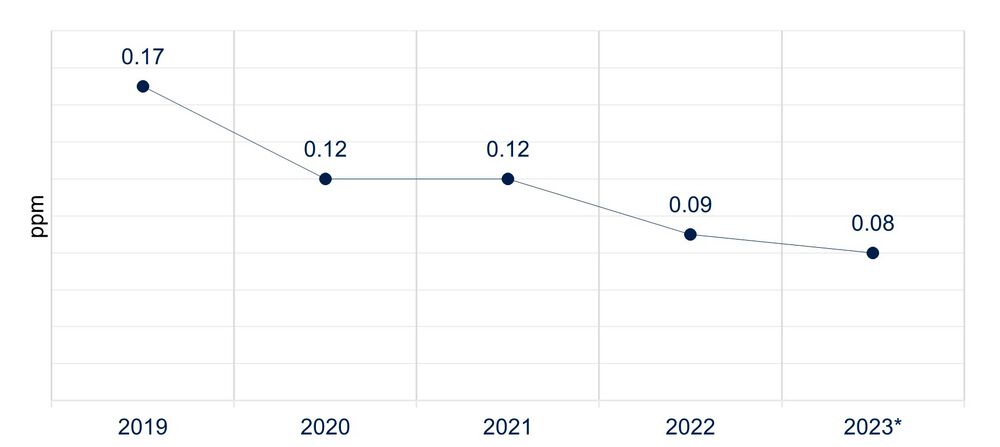

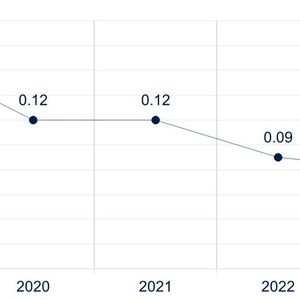

Image 3: Development of the failure rate of the VIPower technology.
(Image:STMicroelectronics)
Electronic components of all kinds play a crucial role in electric vehicles, and improvements here also involve raising the level of quality and reliability. Starting from a current failure rate of 0.08 ppm (parts per million), as shown in Figure 3, the most important goal for the near future is to make VIPower a zero-defect technology.
High voltages in EVs as a potential safety risk
Malfunctions in the automobile's electronics or in the charging infrastructure can potentially summon significant safety issues for both the vehicle occupants and other individuals. Therefore, the power electronics in every electric vehicle must be connected to the high-voltage battery in a safe manner. For this purpose, high-voltage contactors are used, which are electromechanical switches designed for high currents and high voltages - in contrast to relays, which are intended for relatively low load currents.
Two main contactors and a precharge contactor are installed in every electric vehicle - in a vehicle with hybrid drive as well as in a purely electrically driven vehicle. The main contactors close or disconnect the connection between the battery pack and the power electronics and can quickly interrupt this connection in the event of an accident or another event. The precharge contactor charges the initially empty DC link circuit before closing the main contactor, thus avoiding high inrush currents that could be harmful to the battery and the consumers.
The largest number of high-voltage contactors is used in purely battery-electric vehicles (BEVs), as they are required not only in the AC charging system and the DC fast charging system but also in auxiliary functions, as can be seen in Image 1. Overall, one can find eight contactors in a BEV, five in a PHEV (Plug-in Hybrid Electric Vehicle), and three in a HEV (Hybrid Electric Vehicle).
Reliable drivers for high-voltage contactors

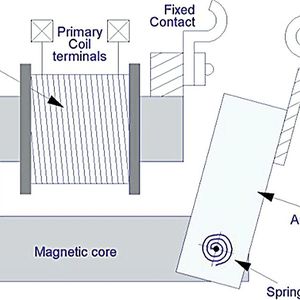

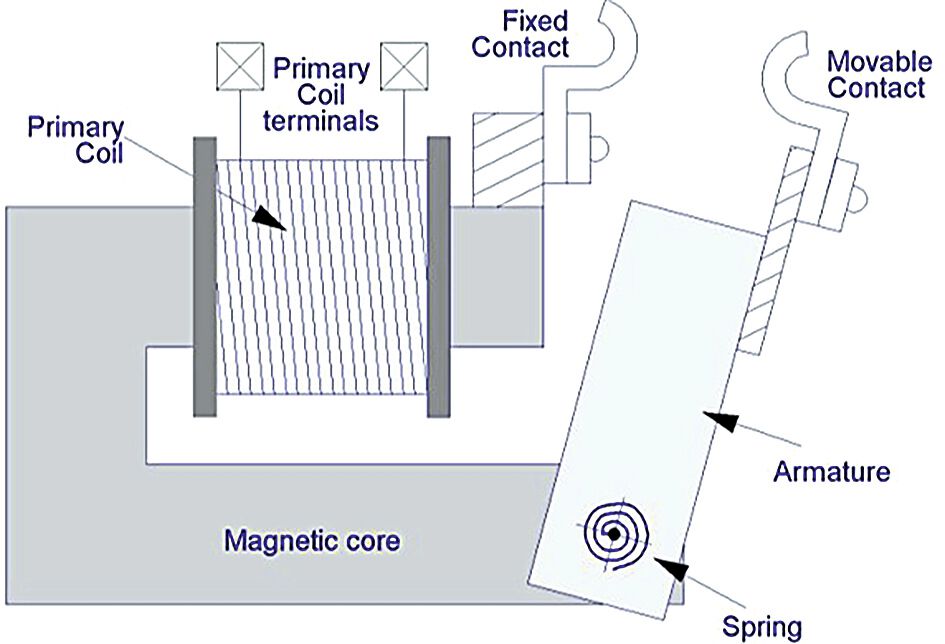

Image 4: Structure of a high-voltage contactor (with closed contact).
(Image:STMicroelectronics)
As can be seen in Figure 4, a contactor consists of two iron cores. The rigid core is wrapped with the actuation coil made of insulated copper wire, and the movable core is responsible for opening or closing the contacts. The movable part is held in its default position by spring force as long as the actuation coil is not energized. For a contactor to close properly, the actuation coil requires the typical current profile shown in Figure 5, which is divided into three phases:

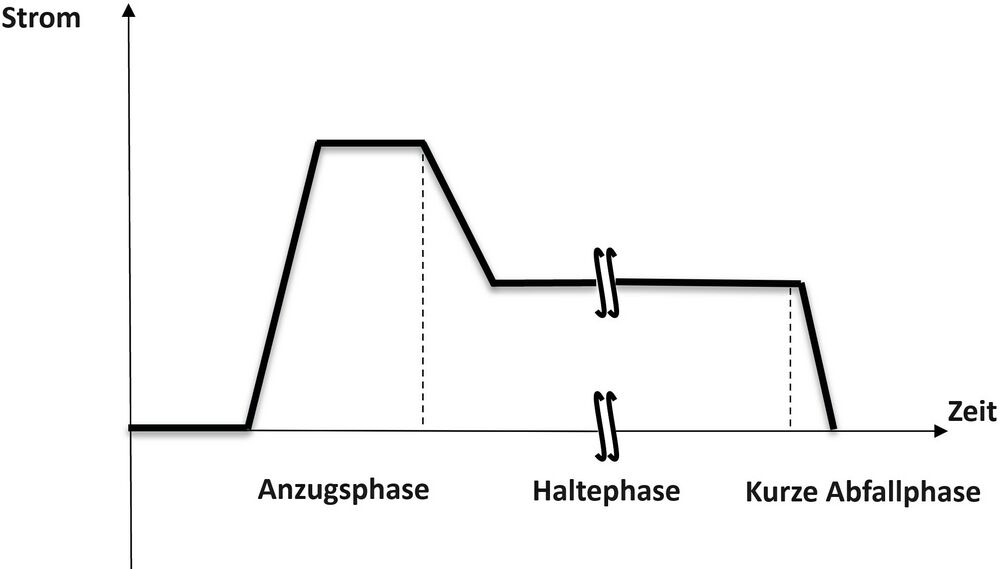

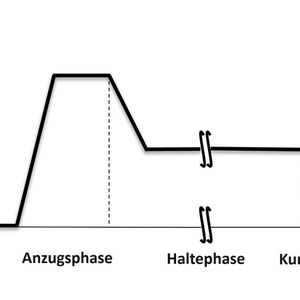

Image 5: Typical current profile in the actuating coil of a high-voltage contactor.
(Image:STMicroelectronics)
Pickup phase: Here the current should be sufficiently high and last long enough to ensure a safe closing of the contact (usually within milliseconds).
Holding phase: In this phase, the current is lower than in the previous phase to reduce power consumption and efficiently maintain the contactor in the closed state. This phase can last indefinitely (up to several hours).
Brief dropout phase: Here, the current drops quickly, in about 10 ms, to achieve a swift opening in the interest of the contactor's reliability and lifespan.
Image 6 shows the typical topology of a circuit for controlling a high-voltage contactor. It is a discrete circuit consisting of high-side and low-side drivers based on VIPower technology, which, in addition to control, also takes over protection and diagnostic functions.
Date: 08.12.2025
Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.
Consent to the use of data for promotional purposes
I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here
Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.
Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.
In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.
Right of revocation
I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

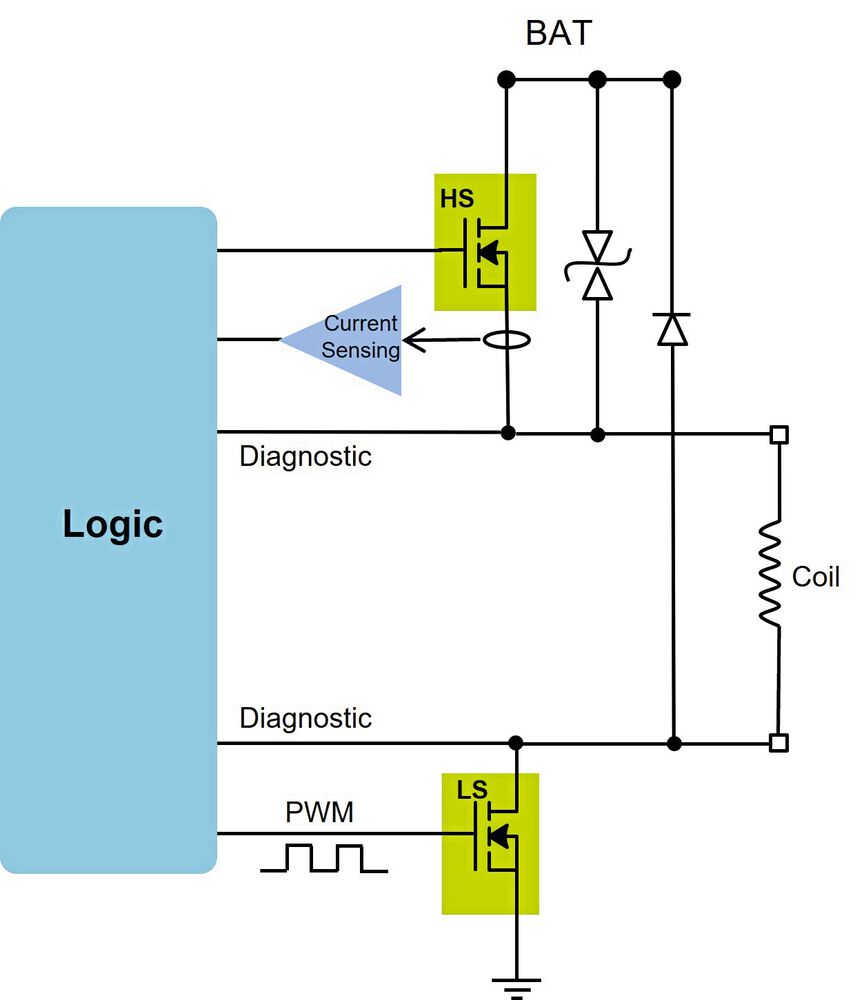

Image 6: Typical topology of a circuit for controlling a high-voltage contactor.
(Image:STMicroelectronics)
While the high-side driver monitors the current profile for correct control of the high-voltage contactor, the control of the low-side driver is achieved through pulse width modulation to modulate the profile of the load current. Both drivers are necessary to protect the high-voltage contactor from short circuits to ground and to the battery, and to achieve an adequate level of safety.
Fully integrated driver solution
The VNH7100BAS component made using VIPower technology is a full-bridge chip for driving DC motors and contains a monolithic, double high-side switch as well as two low-side switches in an SO-16N type package on galvanically isolated leadframes. Furthermore, the VNH7100BAS is equipped with a variety of diagnostic functions (current measurement, off-state diagnosis, and temperature monitoring) as well as protection functions (power and current limitation, overheat protection, and cross-current protection), allowing for solutions for safety-sensitive applications with a high degree of reliability and miniaturization.

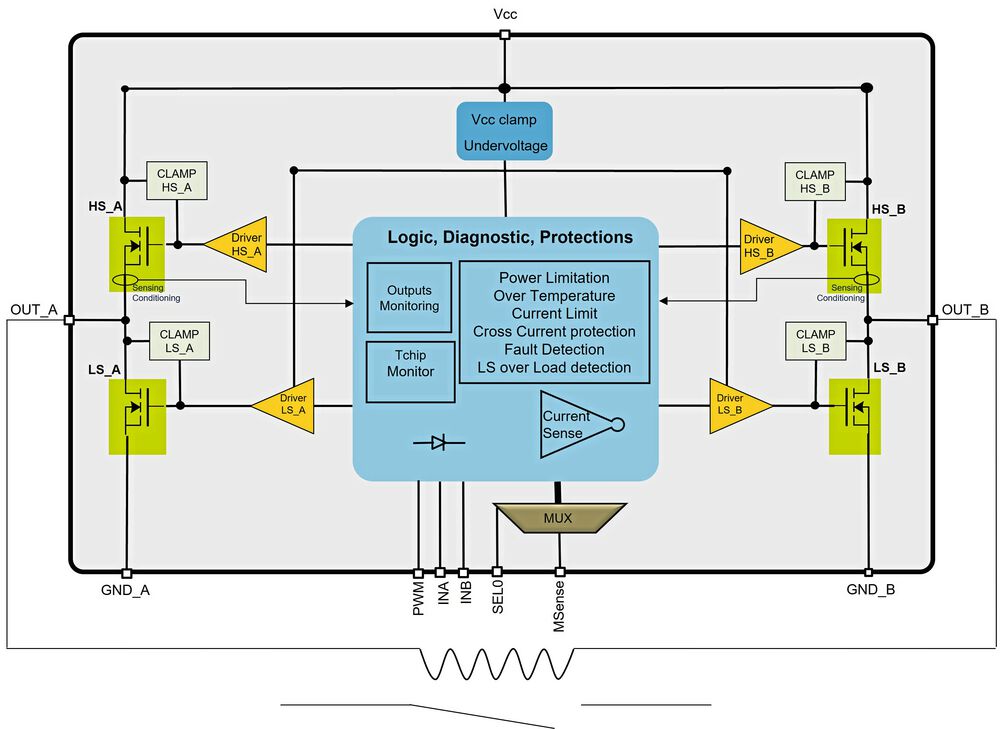

Image 7: VNH7100BAS as a fully integrated driver for high-voltage contactors.
(Image:STMicroelectronics)
Beyond its application with DC motors, the VNH7100BAS can be used as an innovative solution for driving high-voltage contactors (see Figure 7). In a single component, the VNH7100BAS encompasses all the functions necessary for the correct actuation, monitoring, and protection of high-voltage contactors – including current recirculation in PWM operation and rapid demagnetization.
The three phases of the control current for a high-voltage contactor shown in Image 5 can be implemented here as follows:
Pickup phase: Clockwise control (HSA and LSB turned on)
Holding phase: Activation of the PWM signal at LS
Brief dropout phase: Control of the actuating coil with reverse polarity (only HSB turned on)
The VNH7100BAS thus reduces the component effort and the PCB area of the final application and actively contributes to improving safety and reliability with its monitoring and protection functions. (cg)
