The Germany-based company Technagon has specialized in the development and production of charging stations for electric vehicles since 2009. The provider, awarded the Red Dot Design Awards 2023, combines technology with user-friendly design in its charging stations. Partnerships, for instance with Advantech, also contribute to this.

Shaping mobility and securing the future—this is what Technagon and partner Advantech are working on.(Image: freely licensed according to Pixabay) — Shaping mobility and securing the future—this is what Technagon and partner Advantech are working on.
(Image: freely licensed according to Pixabay)

Technagon aims to build its charging stations not only from high-quality materials but also to design them aesthetically appealing. The reason for this focus on quality and design is that many of the target customers wish to use charging stations in high-quality environments. To meet these requirements, there are enormous demands on the design and materials used. Simultaneously, Technagon expects its technology partners to develop solutions that meet the same high standards. Through collaboration between Advantech and Technagon, all technical challenges could be identified and resolved quickly, resulting in shorter development cycles and a faster market introduction of new products. At the same time, on-site warehouses solve supply chain issues, so that shorter delivery times help reduce production outages. This is a decisive competitive advantage in such a booming and fast-paced market as electromobility, which is why warehouses always maintain sufficient stock to remain deliverable even during times of high demand or unexpected shortages.

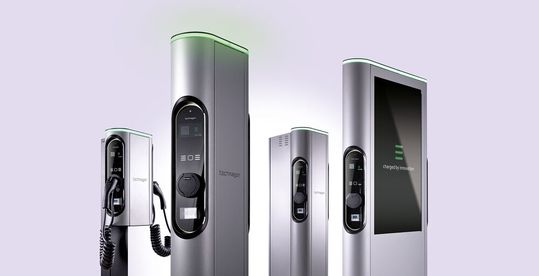

Technagon develops high-end charging solutions at a total of three locations in Bavaria.(Image: Technagon) — Technagon develops high-end charging solutions at a total of three locations in Bavaria.
(Image: Technagon)

A core element in Technagon's new charging solutions is the SMARC Computer-on-Module/COM ROM-5721 developed by Advantech. Advantech has development centers in Germany, and this proximity has enabled both companies to collaborate more effectively than if they were based in different countries. The advantages include a simpler design-in process of the modules into Technagon's infrastructure, while Advantech can provide direct on-site technical support when needed.

SMARC-COM ROM-5721 for charge controller

The SMARC-COM ROM-5721 is based on the energy-efficient i.MX-8M-Mini processor from NXP with up to four ARM Cortex-A53 cores. In addition, it features an ARM Cortex-M4 core, integrated LPDDR4 memory with up to 4 GB, and an embedded MultiMediaCard (eMMC). It also includes a 4-lane MIPI-CSI (Mobile Industry Processor Interface—Camera Serial Interface) as well as 2-channel LVDS (Low-Voltage Differential Signaling) or Display Port.

In addition, there are 4× USB 2.0, 1× USB 2.0 OTG, 4× UART (Universal Asynchronous Receiver/Transmitter), 4× I2C, 12 GPIOs (General-Purpose Input/Output), a PCIe 2.0 high-speed interface, and a Gigabit LAN port. The energy-saving module supports OpenGL ES 2.0/1.1 through hardware accelerators as well as Linux and Android BSPs (Board Support Package).

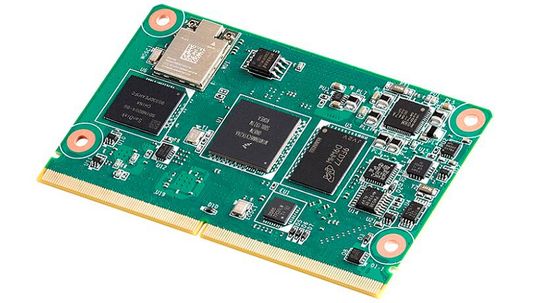

A core element in Technagon's new charging solutions is the SMARC Computer-on-Module/COM ROM-5721 developed by Advantech.(Image: Advantech) — A core element in Technagon's new charging solutions is the SMARC Computer-on-Module/COM ROM-5721 developed by Advantech.
(Image: Advantech)

The ROM-5721 is designed for robust performance with AI/ML features (artificial intelligence and machine learning) as well as multimedia processing. It is suitable for IoT, automation, and edge computing applications. With its small form factor and low power consumption, it is specifically intended for use in space-constrained and energy-efficient designs.

The module was selected as a key component of Technagon's charging controller after careful evaluation. In line with the requirements in the field of electromobility, a solution was sought that is reliable, powerful, and flexible. Because the SMARC module supports numerous interfaces and communication protocols, it facilitates integration into different systems. This versatility is crucial for the charging station provider, as their charging stations are used in a variety of environments.

Security is also crucial here. The module enables the precise control of a charging station and ensures that all safety and performance requirements are met. Together with the software and hardware for the charging controller developed by Technagon, the module meets all relevant safety standards and provides the protection mechanisms essential for the safe operation of charging stations. These include user safety, protection against electrical overload, as well as data integrity and security.

The collaboration with Advantech enables Technagon to integrate IoT technology into its charging stations and offer new services to end users: IoT connectivity optimizes the operation of the charging stations. By utilizing Advantech's existing infrastructure, Technagon's charging stations can now be integrated into a comprehensive fleet management system. This allows the status and performance of each charging station to be monitored and managed in real-time. By analyzing the collected data, optimization potentials are identified, and the efficiency of the entire charging system increases.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Predictive maintenance

Equally promising is predictive maintenance. Through continuous monitoring of charging stations and analysis of operational data, potential issues can be identified and resolved early before they lead to failures. This increases the availability and reliability of charging stations while simultaneously minimizing maintenance costs.

Collaboration as the key

Cooperations such as the one between Technagon and Advantech make a significant contribution to further developing the urgently needed infrastructure for electric vehicles. Both companies are convinced that through their collaboration, they are setting new standards in the EV charging station market by offering solutions that are functional, technically advanced, and visually appealing. This also gives Technagon the opportunity to expand its offerings in this area with additional hardware components like screens and the development of new software. This improves the operation and management of EV charging stations. (se)
