Innovative pressing systems and assembly technology from Tox

Tox at the Battery Show Europe 2024 Connection technology for the energy transition

2024-06-10 Source: TOX | Translated by AI 2 min Reading Time

Related Vendors

Tox-Pressotechnik AG

FAULHABER Drive Systems

tmts2026-ticec-banner-en-2000px (https://www.tmts.tw/en)

Taiwan Machine Tool & Accessory Builders' Association (TMBA)

Wuxi InfiMotion Technology Co., Ltd.

The highlights from Tox in Stuttgart are the servo press system Electricdrive Core in combination with the UDI Panel and the Flexpress assembly workstation.

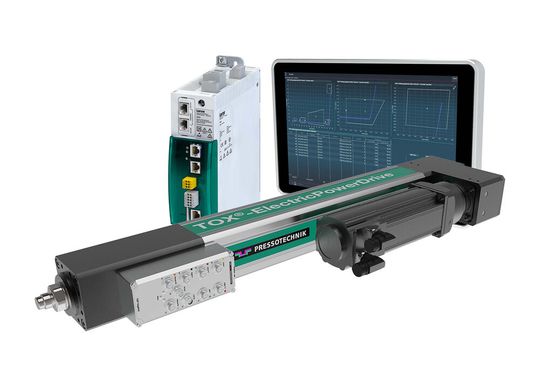

TOX Pressotechnik is using the Battery Show Europe in Stuttgart as an opportunity to present the TOX Electricdrive Core servo press system, which is combined with the TOX UDI Panel. Here's a little preview ...(Image: TOX Pressotechnik) — TOX Pressotechnik is using the Battery Show Europe in Stuttgart as an opportunity to present the TOX Electricdrive Core servo press system, which is combined with the TOX UDI Panel. Here's a little preview ...
(Image: TOX Pressotechnik)

The Battery Show Europe in Stuttgart from June 18 to 20 brings together manufacturers, suppliers and decision-makers to discuss the latest developments in the battery and automotive industries. Tox Pressotechnik is also there with its drive and pressing systems as well as various control units. And it presents the following systems:

Intuitive! UDI stores and processes data

At the trade fair, the Tox Electricdrive Core system in combination with the Tox UDI (Universal Data Interface) panel can be experienced. It features an integrated PC and operates with Tox software on a hardened Linux operating system for optimal IT security, as the exhibitor reports. Through the built-in touchscreen, the user can control the system, visualize processes, and store and process process data. The implemented software with so-called middleware functionality is referred to as the central element of the intuitive panel. It processes data from processes and then also makes them available for various communication standards such as MQTT or OPC UA. In addition, the user can store the data on the internal hard drive or via the network on the server. Relevant process data is displayed with the software.

Assembling error-free in a small space

Visitors will also learn about how to carry out assembly work economically and ergonomically. The answer is Flexpress Compact. It is an assembly workstation that provides precise results and collects data seamlessly, according to Tox. The system is available with performances of 5, 10, 30, and 60 kilo newtons. As for ergonomics, operators simply control the assembly workstation via a 15-inch UDI panel that combines operation, process monitoring, and analysis. A USB hand scanner, a sliding table, and the height-adjustable subframe facilitate handling if desired. The illuminated working area also simplifies operation. Because the status indicator lights up green after a cycle is completed, the next step may proceed. If it lights red, the part does not meet the required quality characteristics and the operator can react immediately. A quiet and fast electric protective door ensures safety. The sloped upper edge allows unrestricted visibility of components and tools in the working area. The new Electriccontrol Core control concept, by the way, does away with a cabinet as the often bulky housing has been moved inside. Even with a subframe, the space requirement in the plant is less than one square meter.

Tox at the Battery Show Europe: Hall 6, Booth F86
