Cutting Gas in Laser Cutting How Oxygen and Nitrogen Shape the Cutting Edge

Related Vendor

FAULHABER Drive Systems

The choice of cutting gas determines the quality, speed and cost-effectiveness of laser cutting. Thick steel sheets in particular show that even small deviations in the settings lead to burrs, discoloration or distortion.

This article uses practical examples to show why the decision "Laser Cutting: Nitrogen or Oxygen?" is crucial for quality and efficiency.

Challenges in Cutting Thick Sheets

As material thickness increases, the sensitivity of the process also rises. Long cutting paths, high heat input, and difficult melt ejection favor typical error patterns:

• Increased burr, especially with nitrogen cutting, if pressure or flow rate is too low.
• Discoloration, oxidation, and slag formation—typical with oxygen cutting, especially with thick sheets (from 20 mm/0.8 in).
• Deformation due to large heat-affected zones when parameters are not optimal.
• Increased roughness and grooves—with fiber lasers due to multiple reflections at the cutting edge.
• Material not optimized for laser cutting during production (laser-prepped or similar), or unclean, painted, or blasted surfaces.
• High energy demand and machine strain—thick sheets require high laser power and stable mechanics.
• Heat-induced structural changes—possible localized material fatigue and altered mechanical properties, like surface hardening at the cutting edge.
• Complex programs—with many small parts or complex contours, the sheet must be processed in several stages to allow the material time to cool.

Why Cutting Gas is So Crucial

The cutting gas fulfills three core functions: it drives the melt out of the kerf, controls the chemical reactions in the cut, and thus shapes the cutting edge, process stability, and productivity.

Oxygen (O₂):
Oxygen reacts exothermically and provides additional heat in the cutting kerf. This increases cutting speed and allows for greater material thicknesses.

• Advantage: High speed and good penetration in unalloyed and low-alloy steels.
• Disadvantage: Scaled cutting edges; reworking is necessary for painted parts or parts for galvanizing.

Nitrogen (N₂):
Nitrogen is inert and prevents oxidation. The cutting edge remains metallic clean and burr-free.

• Advantage: First-class edge quality with CO₂ lasers on stainless steel, aluminum, and non-ferrous metals; minimal rework.
• Advantage: Very high cutting speed with fiber lasers on sheets up to 15mm/0.59in thick (2-4x faster than CO₂).
• Disadvantage: High pressures (typically 10–15 bar) and flow rates (up to ~90 m³/h with thick stainless steel) drive up operating costs; generally lower cutting speed with CO₂ lasers compared to O₂.

Mixed Gas Solutions (Oxygen + Nitrogen)
Modern fiber laser systems use mixed gas strategies to balance speed and cutting quality. The result: faster, cleaner cuts with reduced oxidation and less rework.

Influencing Factors Beyond the Gas

In addition to the choice of gas, numerous parameters determine the cutting quality: Focus position is central: In oxygen laser cutting, the focus is usually on the surface to support the rapid oxidation reaction. In nitrogen laser cutting, the focus is near the bottom of the material due to the different process dynamics—this favors melting and effective blowing out of the melt.

The nozzle geometry also differs: Oxygen uses nozzles with a smaller hole diameter, while nitrogen uses nozzles with a larger hole diameter to handle higher gas volumes and pressures. A constant working distance in the range of about 0.25 to 2 mm (approx. 0.010 to 0.08 in) to the workpiece is important to ensure stable gas guidance.

The beam quality of the laser also significantly affects the cutting quality. With fiber lasers, the risk of multiple reflections in the cut increases with greater sheet thickness, leading to rougher edges. The CO₂ laser offers advantages here with its wavelength and absorption characteristics.

Laser Power and Pulse Frequency are additional key parameters. They determine how thick materials are penetrated and how the heat input affects the material and cut profile. Choosing an appropriate focusing system with the right lens ensures the optimal beam diameter for precise cuts.

Cut guidance also involves the feed rate of the laser head. It directly influences the heat input and the surface quality of the cut edge. Surface conditions such as oxide layers, contaminants, or oil residues change absorption and complicate the process. Last but not least, environmental factors such as temperature, humidity, and dust play a role, as they affect gas flows and laser efficiency. The material's or cooling systems' ability to dissipate heat is also relevant, as it influences distortion and cut characteristics.

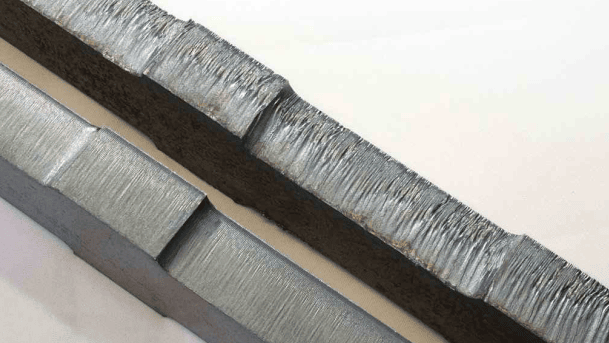

Characteristics of a Good Cutting Edge

Regardless of the cutting gas, a high-quality cutting edge can be identified by clearly defined criteria that ensure quality and minimal rework in practice. Essential is a low surface roughness with a uniform striation pattern for a smooth, calm surface. The cut should be vertical and straight—particularly important for dimensional accuracy in thick materials.

Additionally, the cutting edge must be free of slag and burrs, as both require rework and can affect function or aesthetics. A small heat-affected zone is equally important to minimize the risk of thermally induced distortion—this improves fit and stability. Furthermore, a good cutting edge is characterized by consistent edge smoothness without cracks or material ejection. Maintaining angular accuracy is also crucial, especially for complex and high-precision components.

Checklist for a High-Quality Cutting Edge:

• Consistent, low roughness profile
• Vertical, straight cutting path
• Free of slag and burr formation
• Small, controlled heat-affected zone
• Maintenance of angular accuracy
• Smooth, crack-free edges without material ejection

Practical Lessons: Small Adjustments, Big Impact

Experienced users know: Often, a detail determines the cutting quality. Increasing nitrogen pressure by just +0.5 bar can completely eliminate burr formation and significantly calm the cutting edge. Conversely, reducing oxygen pressure by only –0.1 bar often prevents burnt corners. A minimally adjusted focal point visibly changes the striation pattern—for the better when properly adjusted.

The choice of a new, suitable nozzle also has a strong impact, as it reduces spatter and instabilities in the cutting process. Despite careful optimization, in practice: with nitrogen laser cutting of thick steels, some rework is often required. A cut completely free of burrs or spatter is rarely achievable in these cases. Moreover, regular adjustments and maintenance are indispensable to detect and correct parameter deviations early. This is the only way to sustainably ensure consistently high cutting quality.

Cutting thick sheets is challenging, but with the right expertise, it can be mastered securely. Oxygen cutting offers a good compromise between speed and cutting quality for all types of steel. Nitrogen provides metallic clean cutting edges without a scale layer in steel, aluminum, and stainless steel. Those who precisely coordinate gas selection, focus, nozzle geometry, and gas pressure achieve excellent results with both methods. The question "Laser cutting: Nitrogen or Oxygen?" thus becomes less of an either-or scenario and more of a toolkit for enhanced quality and productivity.

The choice of laser type should not be neglected: CO₂ lasers, due to their now limited power of up to 6 kW, are more suitable for thinner sheets up to 10 mm/0.39 in. They are also particularly well-suited for aluminum and stainless steel up to 10 mm because the better absorption behavior can produce a very smooth and clean cutting edge without burrs.
 Fiber lasers, on the other hand, which can now operate with outputs of over 50 kW, showcase their power advantage in the thin sheet area (up to about 15 mm/0.59 in) with nitrogen cutting gas, where they can achieve a 3- to 5-fold feed rate compared to CO₂ lasers, thus manufacturing complex parts in a fraction of the time. Additionally, much tighter contours and smaller holes are possible with nitrogen cutting.
 The downside of this cutting process is that all parts have more or less pronounced fiber burrs, and the cutting surfaces exhibit a different surface structure. This burr is process-related and can only be removed by subsequent deburring. With oxygen as the cutting gas, the fiber laser can only really shine with thicker sheets (from about 15 mm/0.59 in), because the higher laser power compared to CO₂ lasers allows for larger feed rates and cutting thicknesses of up to 50 mm/2.0in and more.

* Marketing / PR, Rime GmbH
