AI simplifies automatic gripping of difficult components

Gripping technology AI simplifies automatic gripping of difficult components

2024-05-15 A guest post by Schunk | Translated by AI 5 min Reading Time

Related Vendors

The 2D Grasping kit from Schunk allows companies to easily automate their gripping and sorting tasks. Thanks to offline AI support and simple user interface, no specialized personnel are needed for setup, teaching, and application. The kit was awarded the Hermes Award at the Hannover Messe 2024.

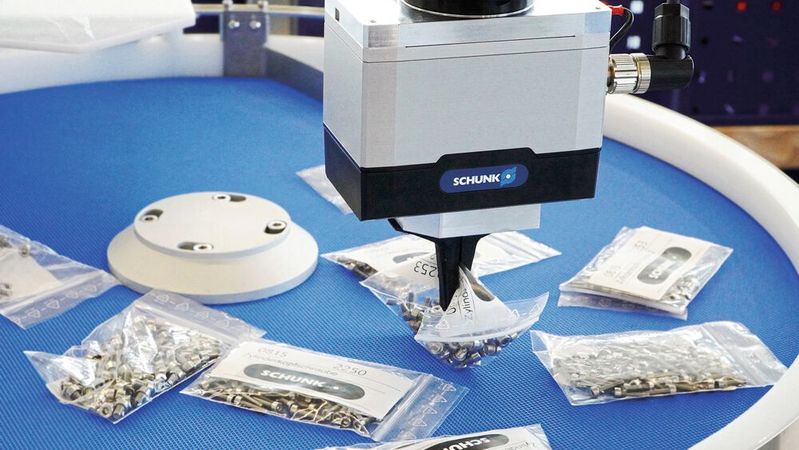

The AI-supported image processing software of the 2D Grasping Kit from Schunk communicates to the robot the position, rotation angle and gripping position for each component.(Image: Schunk) — The AI-supported image processing software of the 2D Grasping Kit from Schunk communicates to the robot the position, rotation angle and gripping position for each component.
(Image: Schunk)

All manufacturing companies face the same challenge: How can they maintain or even expand an economical, efficient production with the same number of employees? Staff shortage has become the norm in all sectors. Therefore, companies want to automate more and more production steps - especially physically demanding or monotonous tasks for which fewer and fewer employees are found.

Challenge of handling components with the robot

Advances in robotics, AI, and gripping systems are constantly opening up new, economical opportunities for automation solutions. In the past, it could still be assumed that the companies had enough skilled personnel to set up and operate automation systems. While the systems always gained more functions, they also became more difficult to operate. This poses problems for small and medium-sized enterprises today: they are struggling with staffing shortages that prevent them from automating their production and thus making it future-proof. In particular, the handling of components with the robot presents a major challenge for them. If a camera system is then also required for the precise positioning of the components, many companies reach their limits and have to rely on external service providers for automation, making them dependent on these.

Gallery

The system reliably recognizes and handles even difficult components such as screws wrapped in foil (variable contour and reflective).(Image: Schunk)

The 2D Grasping Kit relieves human employees of monotonous tasks like sorting and correctly positioning.(Image: Schunk)

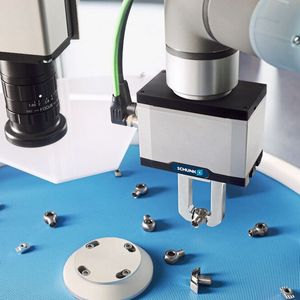

After a short period of teaching, the 2D Grasping Kit works independently.(Image: Schunk)

Gallery with 5 images

To master this challenge, Schunk has developed the 2D Grasping Kit, an application kit that enables fast, cost-effective, and uncomplicated automation with the help of AI developed by Schunk in Germany. The kit consists of:

a camera with lens
an industrial PC
the Schunk AI software
the required cables

All components are matched to each other and can be combined with any robot or higher-level control system (for example Siemens PLC) due to an open TCP/IP interface. It allows for the handling and sorting of various components arranged randomly on a plane. Finally, a solution for the type of task that was previously complex to automate, but monotonous and uninteresting for human workers.

For example, when turning parts come out of a machine in a contract manufacturing company, they usually fall into a box. An employee then sorts them by hand and places them correctly in trays to make subsequent processing steps easier to automate. However, it can easily happen that components are damaged or mixed up. If the robot takes over, the employee is relieved and at the same time, effort and susceptibility to failure in subsequent automated processes are reduced.

Complex task made easy

Schunk uses the 2D Grasping Kit in its own production in Germany. Customers have the opportunity to validate their own applications in the CoLab Robot Application Center and find out with little effort how the system can improve their own production.

Once the system is mechanically set up, an average user needs less than half a day to teach (new) components to the system. The web interface of the software guides him step by step to the result. The various steps are:

Step 1: Take pictures of components
Step 2: Define objects and gripping points
Step 3: Train the AI and start

This is what the individual steps look like in detail:

Step 1: Take pictures of components

The camera looks down on a feeding belt, a tray, or a provisioning table. The AI software recognizes and distinguishes the components based on previously trained images and outputs the optimal gripping position. For this, the camera first captures the background on which the components will later lie. Then it takes several pictures of the parts to be gripped. For example, if the robot needs to grip parts along with transparent packaging for a picking task, like screws and nuts in a plastic bag, the operator just takes several images of the components in various positions.

A frequently underestimated challenge for camera-assisted automation systems is lighting. Depending on the installation situation, it can be difficult to choose suitable lighting, especially since there are many different parameters to consider, such as size, distance, wavelength, or beam angle. The 2D Grasping Kit does not require a special light source and is significantly more resistant to extraneous light than traditional vision systems thanks to AI-supported software. Therefore, the camera can handle changing light conditions - such as daylight-dependent sunlight - as well as changing backgrounds. The color and the reflection behavior of the surface also have a minimal impact. For example, the system reliably recognizes metallic components even on bright backgrounds.
