The performance of modern notebooks and mobile workstations is increasingly limited by a factor that has long been considered largely exhausted: the energy density of the battery. New approaches with silicon anodes could now noticeably shift this limit.

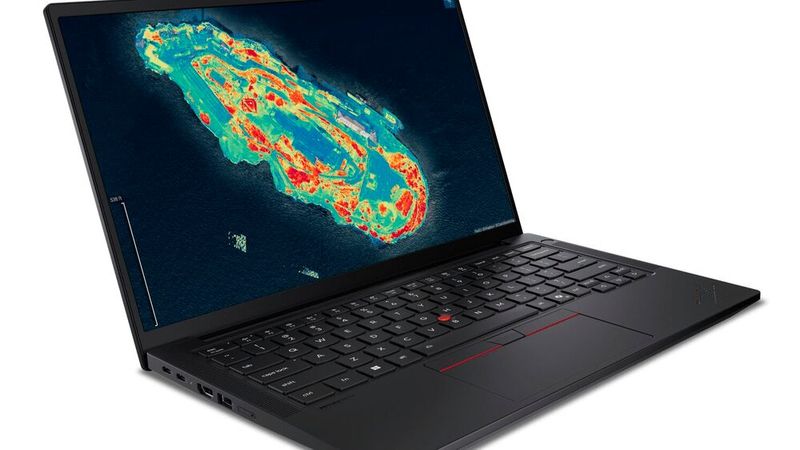

With an energy density of up to 1,000 Wh/L, a current demonstrator shows the direction in which battery technology for high-performance mobile systems could develop. In collaboration with Shanghai Jiao Tong University, Lenovo has presented a silicon anode battery under the name "ED1000" as a proof of concept. In classic lithium-ion batteries, the anode is mainly based on graphite. This material is proven and durable, but has physical limits when it comes to the amount of energy that can be stored. Typical volumetric energy densities today are in the range of around 700 to 800 Wh/L.

This is sufficient for many applications, but modern workloads are fundamentally changing the requirements. AI inference directly on the device, GPU-accelerated simulations or parallel development environments lead to significantly higher power consumption. This creates a growing imbalance between available computing power and usable battery life.

Silicon Instead of Graphite: the Physical Advantage

Compared to graphite, silicon offers a significantly higher theoretical capacity as an anode material. While graphite can only store lithium ions to a limited extent, silicon enables a much higher capacity.

The advantage is obvious: more energy in the same volume. This means that either longer running times can be achieved or more compact appliances can be built.

However, silicon poses considerable challenges in terms of material technology. The material expands considerably during charging, which can lead to mechanical stress and rapid degradation. It is precisely this problem that has prevented its widespread use to date.

1,000 Wh/L: What Does This Value Mean?

An energy density of 1,000 Wh/L corresponds to an increase of over 10% compared to current high-end cells. The decisive factor here is not so much the absolute figure as the integration into existing device classes.

As notebooks are limited by regulations to a capacity of around 100 Wh, runtimes cannot simply be increased by using larger batteries. Instead, the energy must be stored more densely. This is exactly where the new technology comes in: more energy in the same installation space.

For mobile workstations, this means more scope for performance-intensive applications without restricting mobility.

Technological Implementation: Challenges And Approaches

The integration of silicon anodes in marketable batteries requires a large number of adjustments at material and process level. For example, nanostructured materials or silicon-graphite composites are used to control the mechanical stresses. At the same time, electrolytes and interfaces must be stabilized in order to control the formation and ageing of the SEI layer.

Cycle stability also remains a critical point. A high energy density is only relevant if it remains stable over many charging cycles. At the same time, the requirements for thermal management increase with increasing energy density, as more energy is stored in a smaller space.

Significance for Mobile Workstations

This development is having its greatest impact on high-performance notebooks in particular. Systems with dedicated GPUs and AI accelerators can only make the most of their performance if the power supply can keep up.

With higher energy density, such systems can be operated under load for longer without being limited prematurely by energy or thermal limits. At the same time, this opens up new degrees of freedom in design—either through longer running times or slimmer designs.

Evolution Instead of Revolution?

The increase to 1,000 Wh/L is not a radical technological leap, but a significant advance in an area that has been stagnating for a long time. This is precisely why it is strategically relevant.

With the increasing focus on local AI processing and high-performance mobile systems, the importance of the battery is shifting. It is once again becoming a central field of innovation—not as a secondary component, but as a limiting factor for the entire system architecture.

Conclusion

Silicon anodes have been considered a promising approach to increasing energy density for years. The 1,000 Wh/L mark now shown indicates that this technology is gradually approaching practical application.

However, it is not yet a product ready for series production, but rather a proof of concept. This means that the basic functionality has been proven, but industrial scaling, long-term stability and cost optimization are still pending. (mr)
